Cisco 200-155 Pdf 2021

NEW QUESTION 1
Which two items can you use to provide northbound connectivity from a fabric interconnect? (Choose two)

• A. uplink
• B. port channel
• C. FEX
• D. IOM
• E. server port

Answer: AB

NEW QUESTION 2
Which definition of the REST API for a Cisco APIC is true?

• A. It includes classes and methods as programmatic entities.
• B. It contains the management information tree.
• C. It accepts and returns HTTPS messages that contain JSON or XML documents.
• D. It stores the configuration information and the state information of the APIC.

Answer: A

NEW QUESTION 3
Which three items in Cisco Unified Computing System are subject to finite state machine validation?
(Choose three.)

• A. SNMP get
• B. local login
• C. server discovery
• D. firmware downloads
• E. server boot
• F. backup jobs

Answer: CDF

NEW QUESTION 4
A user logs into a Cisco Nexus 7000 Series device and issues a show vpc brief command but the user does not see any output. What could cause this issue?

• A. The user needs to enable the vPC feature
• B. The user does not have admin level privilege
• C. The vPC peer link is down
• D. The command is not valid

Answer: A

NEW QUESTION 5
Which two components are part of the Cisco Unified Computing System 2104 I/O Module? (Choose two)

• A. multiplexer
• B. chassis management console
• C. finite state machine
• D. data management engine
• E. chassis management controller

Answer: AE

NEW QUESTION 6
How many VRFs are present in Cisco Nexus OS by default?

• A. 1
• B. 2
• C. 4

Answer: C

Explanation:
Management VRF and Default VRF
Each router has a management VRF and a default VRF: Management VRF
The management VRF is for management purposes only. Only the mgmt 0 interface can be in the management VRF. The mgmt 0 interface cannot be assigned to another VRF. The mgmt 0 interface is shared among multiple VDCs.
No routing protocols can run in the management VRF (static only). Default VRF
All Layer 3 interfaces exist in the default VRF until they are assigned to another VRF. Routing protocols run in the default VRF context unless another VRF context is specified. The default VRF uses the default routing context for all show commands.
The default VRF is similar to the global routing table concept in Cisco IOS.
Reference: https://supportforums.cisco.com/document/133711/vrf-configuration-and-verification- nexus-7000

NEW QUESTION 7
What is another term for data plane?

• A. signaling plane
• B. control plane
• C. forwarding plane
• D. management plane

Answer: C

NEW QUESTION 8
A customer deployed Cisco B200 blades with service profiles. The customer experiences an outage on one of the Cisco B200 blades that will be replaced with a spare blade already in inventory. Which two steps should the customer take to replace the failed blade? (Choose two.)

• A. Disassociate the service profile from the failed blade.
• B. Associate the service profile to the spare blade.
• C. Create a new service profile for the spare blade.
• D. Delete the service profile from the spare blade.
• E. Create a new service profile template for the failed blade.

Answer: AB

NEW QUESTION 9
Which plane does a router use to exchange topology information to build a routing table?

• A. back plane
• B. data plane
• C. control plane
• D. management plane

Answer: C

NEW QUESTION 10

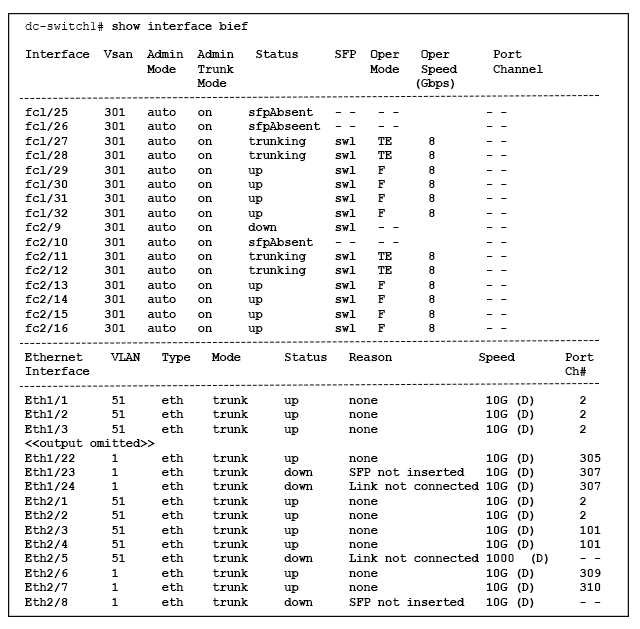

Refer to the exhibit. On which slots are the Cisco Nexus unified ports configured?

• A. slot 1 and slot 2
• B. slot 1
• C. slot 3
• D. slot2 and slot 3

Answer: B

NEW QUESTION 11
Which two components are primary elements of a tenant?

• A. contracts
• B. fire rules
• C. switch domains
• D. outside networks
• E. access policies

Answer: AD

NEW QUESTION 12

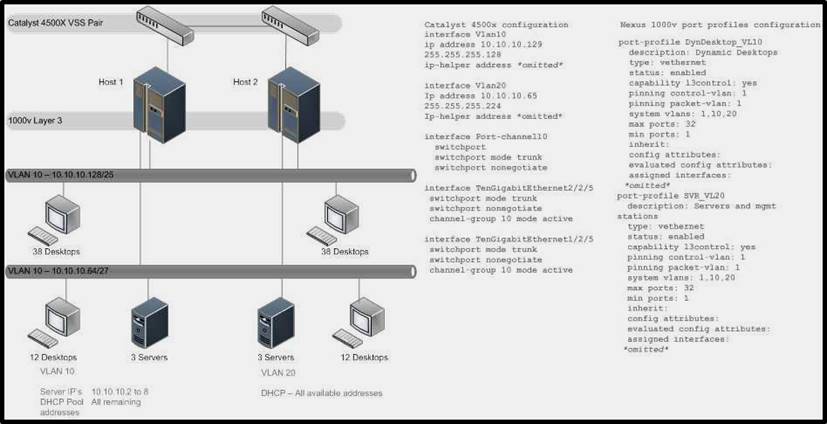

Refer to the exhibit.

An engineer is presented with a VMWare ESX cluster consisting of two VMWare ESX hosts running Nexus 1000v. The guest system inventory consists of 100 static virtual desktops. What change will permit all 100 guests to be online at the same time?

• A. increase the subnet size for VLAN 10 on the 4500x core
• B. increase the max-ports setting for the VLAN 10
• C. increase the global max-ports setting m the Nexus 1000v
• D. increase the max-ports setting for both VLAN and 20

Answer: B

NEW QUESTION 13
Which statement about NPIV is true?

• A. NPIV provides a means to assign multiple Fibre Channel IDs to a single N-port
• B. NPIV can be enabled on a per-VSAN basis.
• C. NPIV requires a "write erase" and then reload the switch in order to come up into NPIV mode.
• D. NPIV is a Cisco proprietary feature and as such works only between two Cisco switches.
• E. NPIV must not be enabled on a switch that is also running N-port virtualization.

Answer: A

NEW QUESTION 14

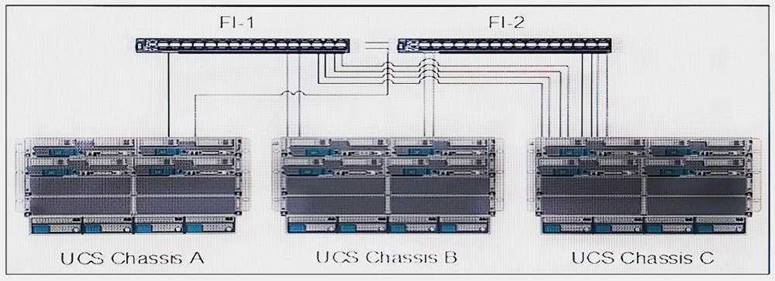

Refer to the exhibit.

A four-link chassis discovery policy is configured in Cisco UCS Manager. Which
component s are discovered when the chassis components connect to the fabric interconnects?

• A. UCS Chassis B and UCS Chassis C
• B. UCS Chassis C
• C. UCS Chassis B
• D. UCS Chassis A, UCS Chassis B, and UCS Chassis C

Answer: B

NEW QUESTION 15
When configuring virtual PortChannels on Cisco Nexus switches, what does the vPC domain consist
of?

• A. two vPC peer switches connected by a virtual switch link
• B. two VSS peer switches connected by a peer link
• C. two VSS peer switches connected by a port channel
• D. two vPC peer switches connected by a peer link

Answer: D

NEW QUESTION 16
Which two options are primary elements of a tenant? (Choose two )

• A. firewall rules
• B. contracts
• C. EPG
• D. access policies
• E. switch domains

Answer: BC

NEW QUESTION 17
Which three are the names of configuration tabs that appear in the Navigation Pane of the UCS
Manager GUI? (Choose three.)

• A. VLAN
• B. LAN
• C. VSAN
• D. Policies
• E. Equipment
• F. Global
• G. Admin

Answer: BEG

NEW QUESTION 18
Which type of traffic is handled by the data plane?

• A. packets destined for the device
• B. control packets
• C. transit packets
• D. packets indirectly destined for the device

Answer: A

NEW QUESTION 19
Which component of Cisco UCS B-Series is also referred to as a FEX?

• A. UCS 5108
• B. UCS 2104XP
• C. UCS 6248UP
• D. UCS 6120
• E. UCS MK72-KR

Answer: B

NEW QUESTION 20
Which two chassis discovery policy settings allow far a UCS chassis to be connected to a pair of Fabric
Interconnect using only two physical connections' (Choose two)

• A. 4-link
• B. 2-link
• C. 8-link
• D. 1-link
• E. Platform-max

Answer: BD

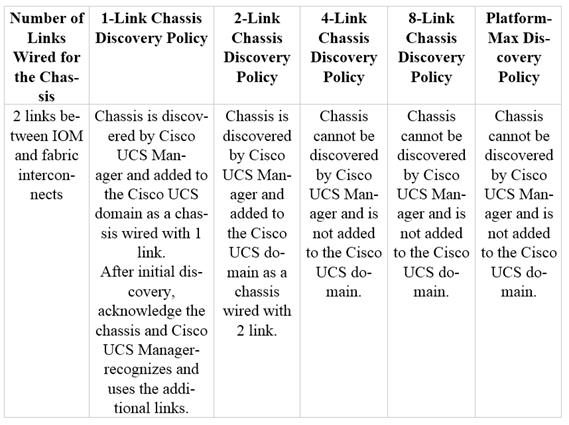

Explanation:

Reference: http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_Guide_2_0/b_UCSM_GUI_Configuration_Guide_2_0_chapter_0110 0.html

NEW QUESTION 21

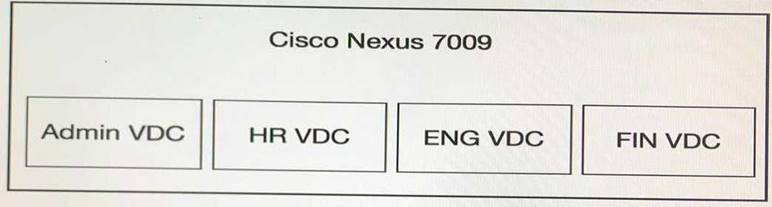

A user is trying to create a new VDC in NX-OS in global configurations mode, but receives an error message What issue prevents the user from creating Virtual Device Contexts?

• A. VDCs cannot be created in global configuration mode.
• B. The user is not a vdc-admin.
• C. The user is not a member of the VDC Power Admin group.
• D. The user is not a network-admin.

Answer: D

Explanation:
VDCs have the following configuration guidelines and limitations:
Standard VDCs cannot share interfaces, VLANs, Virtual Routing and Forwarding (VRF) tables, or port channels.
Only users with the network-admin role can create VDCs.
Reference: http://www.cisco.com/c/en/us/td/docs/switches/datacenter/sw/nx- os/virtual_device_context/configuration/guide/b-7k-Cisco-Nexus-7000-Series-NX-OS-Virtual-Device- Context-Configuration-Guide/creating-vdc.html#concept_967368376CF246FA8B200C78081B389A

NEW QUESTION 22
Which port is used for an interswitch connection between switches in a multihop FCoE scenario?

• A. NPort
• B. VFPort
• C. VN Pott
• D. VEPort

Answer: D

NEW QUESTION 23
When comparing Cisco Nexus 2000 Series Fabric Extenders to tradition top-of rack switches, which
two statements are true? (Choose two)

• A. Fabric Extenders lower oversubscription in the data center
• B. Fabric Extenders offload the switching of traffic from the parent
• C. Physical interfaces are represented by the parent switch as logical interfaces
• D. Fabric Extenders operate as a remote line card to the upstream switch.

Answer: CD

NEW QUESTION 24
Which two installation models are supported by Cisco virtual interfaces? (Choose two)

• A. pass-through switching
• B. stare-and-forward switching
• C. channeled uplink
• D. hypervisor controlled
• E. native switching

Answer: AD

NEW QUESTION 25

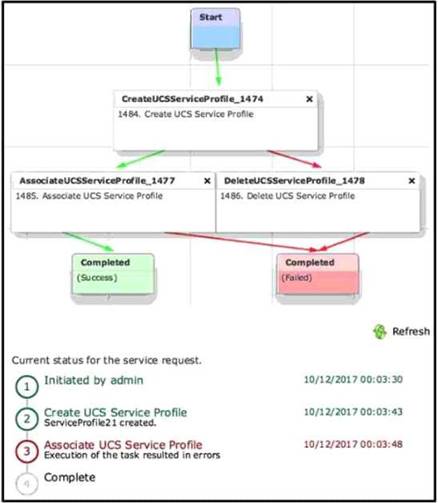

Refer to the exhibit.

Which description of the workflow is true?

• A. It attempts to associate the service profile to another blade
• B. It completes in a failed state
• C. It pauses while waiting for user input
• D. It deletes the service profile

Answer: A

NEW QUESTION 26
Which description of switch discovery on a Cisco APIC is true?

• A. The APIC assigns an IP address to the switch from a pool.
• B. Only leaf switches are discovered automatically.
• C. A switch can be registered to multiple APIC clusters.
• D. A switch registers with the APIC automatically.

Answer: B

NEW QUESTION 27
Which description of the APIC REST API is true?

• A. uses Java to access the Cisco ACI fabric
• B. allows administrators to programmatically configure objects
• C. uses SNMP for POST and GET
• D. allows administrators to retrieve configurations in the CSV format

Answer: A

NEW QUESTION 28
Refer to the exhibit.

Refer to the exhibit. How many STP domains are present?

• A. 3
• B. 4
• C. 1
• D. 2

Answer: A

NEW QUESTION 29
You are creating a workflow by using the Workflow Designer in Cisco UCS Director. Which three tasks
are preconfigured in the workflow by default? (Choose three.)

• A. Physical Network tasks
• B. Start
• C. Service Container tasks
• D. Completed (Success)
• E. Public Cloud tasks
• F. Completed (Failed)

Answer: BDF

NEW QUESTION 30

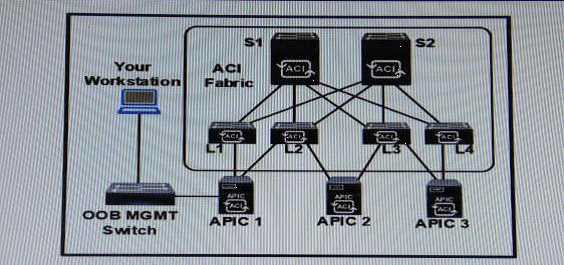

Refer to the exhibit

Refer to the exhibit, which device is discovered after L1 registers to APIC 1?

• A. OOB MGMT switch
• B. L2
• C. S1
• D. APIC 2

Answer: C
