NEW QUESTION 1
An engineer is troubleshooting a connectivity issue across the MPLS network and is verifying the forwarding behavior of packets. Which table does the engineer look at to verify the forwarding behavior of an IP packet as it enters the MPLS network at the ingress LSR?
- A. LFIB
- B. LIB
- C. RIB
- D. FIB
Answer: A
NEW QUESTION 2
You have configured MSDP peering between two autonomous systems that pass traffic between two sites, but the peering has failed to come up. Which task do you perform to begin troubleshooting the problem?
- A. Verify that multicast has been disabled globally
- B. Verify that PIM-DM is configured on the source interface
- C. Verify that both source interfaces are reachable from both peers
- D. Verify that the two MSDP peers allow asymmetric routing
Answer: C
NEW QUESTION 3
What can be used to determine a path from the head-end to a tail-end router when implementing SR-TE with a head-end, with little information on the network topology?
- A. traffic controller
- B. path computation engine
- C. tail-end router
- D. SNMP server
Answer: B
NEW QUESTION 4
Refer to the exhibit. A network operator wants to expand the segment routing global block in upcoming maintenance. The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain. Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0? A.
- A. A.
B.
- B.
- C.
Answer: C
NEW QUESTION 5
Which statement about enabling segment routing for IGPs is true?
- A. Segment routing must first be enabled under then routing process and then globally
- B. Segment routing must first be enabled globally and then under the routing process
- C. Segment routing can be enabled only under the routing process
- D. Segment routing can be enabled only globally
Answer: B
NEW QUESTION 6
Which two statements about mapping multicast IP addresses to MAC addresses are true? (Choose two.)
- A. All mapped multicast MAC addresses begin with 0x0100.5E
- B. The router performs the mapping before it hands the packet off to a switch
- C. All multicast MAC addresses end with 0x0100.5E
- D. The mapping process may generate overlapping addresses, which can cause receivers to receive unwanted packets
- E. All destination MAC addresses begin with an octet of binary 1s
Answer: AD
NEW QUESTION 7
What is used by SR-TE to steer traffic through the network?
- A. shortest path calculated by IGP
- B. dynamic rules
- C. path policy
- D. explicit maps
Answer: C
NEW QUESTION 8
Which two routing protocols have extensions capable of running SRv6? (Choose two.)
- A. OSPF
- B. BGP
- C. RIP
- D. IGRP
- E. EIGRP
Answer: AB
NEW QUESTION 9
Refer to the exhibit. After troubleshooting an OSPF adjacency issue, routers 1, 2, and 3 have formed OSPF neighbor relationships. Which statement about the configuration is true?
- A. Router 2 receives a Type 5 LSAs from router 1 for its connected subnets
- B. Router 2 uses router 3 as the next hop for 192.168.0.0/24
- C. Router 2 uses router 1 as the next hop for 192.168.0.0/24
- D. Router 2 receives a Type 7 LSAs from router 3 for its connected subnets
Answer: A
NEW QUESTION 10

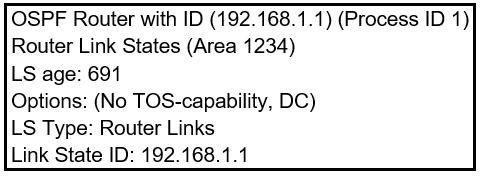

Refer to the exhibit. Which LSA type is indicated by this router output?
- A. type 3 LSA
- B. type 4 LSA
- C. type 1 LSA
- D. type 2 LSA
Answer: C
NEW QUESTION 11

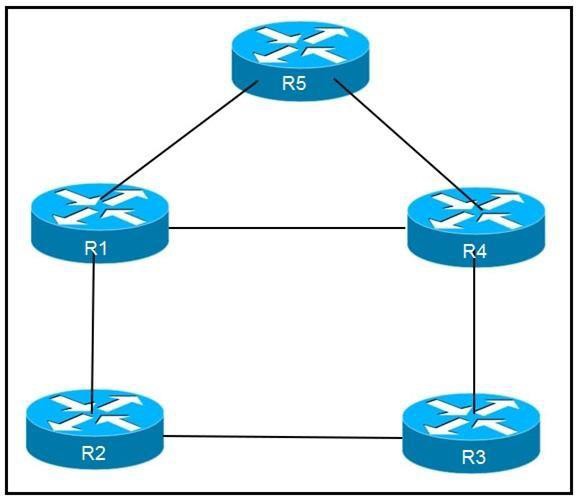

Refer to the exhibit. An engineer is addressing an IS-IS design issue which is running within the topology. All links are running on FastEthernet, except the link between R5 and R4, which is Gigabit Ethernet. Which statement about the design is true?
- A. R4 prefer to reach R5 using R1 as the next hop
- B. All links have equal cost if the default metric is used
- C. R5 prefers to use R4 as the next hop for all routes
- D. R1 prefer to use R5 as the next hop to reach R4
Answer: B
NEW QUESTION 12
A network engineer is troubleshooting OSPF multiarea. Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?
- A. hierarchical CLI
- B. DR support for topology management
- C. routing process enabled by default on all interfaces
- D. show ip ospf topology command
Answer: A
NEW QUESTION 13
Refer to the exhibit. An engineer is troubleshooting an OSPF issue. Router 1 has a neighbor relationship with router 2. Only router 1 classful EIGRP routes can be seen on router 2. In order for all EIGRP routes to be redistributed correctly, which action should be taken?
- A. Router 1 must have the keyword subnets included in the redistribution command for all EIGRP routes to be redistributed.
- B. Router 1 must remove the AS number 1 from the redistribution command for all EIGRP routes to be redistributed.
- C. Router 1 must have the keyword ospf-metric included in the redistribution command for all EIGRP routes to be redistributed.
- D. Router 1 must have the keyword metric-type 1 included in the redistribution command for all EIGRP routes to be redistributed.
Answer: A
NEW QUESTION 14

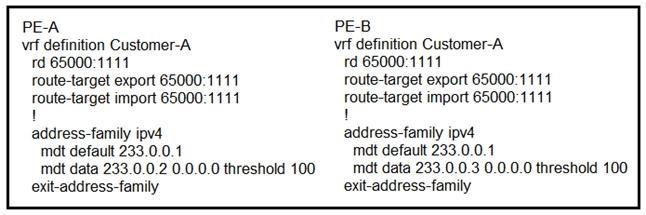

Refer to the exhibit. Which tree does multicast traffic follow?
- A. shared tree
- B. MDT default
- C. source tree
- D. MDT voice
Answer: B
NEW QUESTION 15

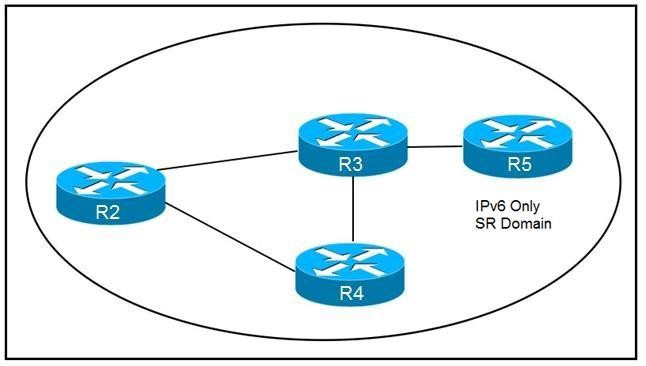

Refer to the exhibit. How are packets directed through the data plane when SRv6 is implemented?
- A. An ordered list of segments is encoded in a routing extension header
- B. The MPLS data plane is used to push labels onto IGP routes
- C. A stack of labels represents an ordered list of segments
- D. The packet is encapsulated with a header and trailer encoding the ordered list of segments
Answer: A
NEW QUESTION 16
Refer to the exhibit. P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which action fixes the issue?
- A. Change HMAC-MD5 to HMAC-SHA1-20
- B. Configure the send and accept lifetime under key 1
- C. Change HMAC-MD5 to MD5
- D. Change HMAC-MD5 to HMAC-SHA1-12
Answer: B
NEW QUESTION 17
Which command is used to enable BIDIR-PIM under global configuration mode for Cisco IOS XE Sofware?
- A. ip pim bidir-enable
- B. ipv4 pim bidir-enable
- C. ip multicast-routing
- D. ip pim bidir
Answer: A
NEW QUESTION 18

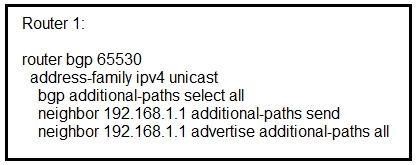

Refer to the exhibit. Which statement about this configuration is true?
- A. Router 1 sends and receives multiple best paths from neighbor 192.168.1.1
- B. Router 1 sends up to two paths to neighbor 192.168.1.1 for all routes
- C. Router 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS
- D. Router 1 receives only the best path from neighbor 192.168.1.1
Answer: A
NEW QUESTION 19
Refer to the exhibit. P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which two actions fix the issue? (Choose two.)
- A. Change MD5 to HMAC-SHA1-12
- B. Change MD5 to HMAC-ESP
- C. Change MD5 to SHA-1
- D. Change MD5 to HMAC-MD5
- E. Remove the send and accept lifetime under key 1
Answer: AD
NEW QUESTION 20
Refer to the exhibit. Routers R1 and R2 cannot form a neighbor relationship, but the network is otherwise configured correctly and operating normally. Which two statements describe the problem? (Choose two.)
- A. The two routers are in the same area
- B. The two routers are in different subnets
- C. The two routers have password mismatch issues
- D. The two routers have the same network ID
- E. The two routers are in different areas
Answer: BE
