NEW QUESTION 1
To log on the one-X® Communicator to Avaya Aura® Presence Services server, what do you enter in the IM and Presence / Server field of the one-X® Communicator?

• A. the management IP-Address of FQDN of Avaya Breeze™ server
• B. the management IP-Address of FQDN of Avaya Aura® Session Manager (SM)
• C. the SM100 IP-Address of FQDN of Avaya Aura® Session Manager (SM)
• D. the SM100 IP-Address or FQDN of Avaya Breeze™ server

Answer: C

Explanation:
The SIP one-X Communicator needs to be configured to use a specific protocol and port when registering to Session Manager.
Enter the IP address of the Session Manager virtual SM-100 card for Session Manager SIP Element.
References: Application Notes for Configuring Avaya AuraTM Presence
Services 6.0 with Avaya AuraTM Session Manager 6.0, and Avaya AuraTM Communication Manager for one-XTM Communicator clients as part of Avaya Unified
Communication Mobile Worker Solution – Issue 1.0, page 30
https://www.devconnectprogram.com/fileMedia/download/dba93412-03c6-4fda-8d6a-280ae2193d6f

NEW QUESTION 2
You want to multiplex all remote workers SIP messages to Avaya Aura® Session Manager (SM) over the same TCP connection, rather than open a dedicated TCP connection for each user.
Which feature needs to be enabled for Avaya Session Border Controller for Enterprise (SBCE)?

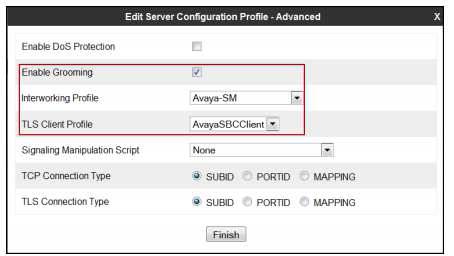

• A. the Enable Grooming feature in the Advanced tab of the Avaya Aura® Session Manager (SM) Server Profile
• B. the Enable Shared Control feature in the Signaling Interface.
• C. the Stream Users Over Transport Link feature in the Signaling Interface
• D. the Share Transport Link feature in the Advanced tab of the Avaya Aura® Session Manager (SM) Server Profile

Answer: A

Explanation:

References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya
Aura® Session Managers Rel. 6.3 - Issue 1.0, page 36
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 3
On Avaya Session Border Controller for Enterprise (SBCE), which two ways can be used to view
System Logs? (Choose two.)

• A. from CLI execute cat >var> log > Avaya > syslog
• B. from System Manager web GUI > Alarms and Events
• C. from CLI execute cat archive > syslog > ipcs.log
• D. from EMS web GUI SBCE Dashboard access Logs > System Logs

Answer: CD

Explanation:
C: Call Trace data are written to this location:
– /archive/syslog/ipcs/octeon.log
D: Viewing system logsProcedure
* 1. Log on to the EMS web interface with administrator credentials.
* 2. Select the Logs option from the toolbar, and click the System Logs menu.
The system displays the Syslog Viewer screen. On this screen, you can specify criteria in the Query
Options section to filter the results displayed.
* 3. In the Start Date and End Date fields, filter the results displayed in a search report to fall within
starting and ending dates and times. In previous Avaya SBCE Syslog Viewer windows, there were four
separate fields: Start Date, Start Time, End Date, and End Time.
References: Troubleshooting and Maintaining Avaya Session Border Controller for Enterprise
(December 2015), page 21
Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 478

NEW QUESTION 4
Which two options describe the purpose of TraceSM in the Avaya Aura® Presence Services? (Choose two.)

• A. It captures Packet-Size statistics from every telephone call in Avaya Aura® 7.
• B. It captures real-time XMPP traffic.
• C. It captures Voice and Video Calls media packets in real-time.
• D. It captures live traces for both SIP and H323/XMPP clients.
• E. It captures Contact details from every user connected to Avaya Aura® Presence Services.

Answer: BD

Explanation:
It’s important to know that traceSM is a real-time capture tool.
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing
activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.
References: https://andrewjprokop.wordpress.com/2014/06/02/a-necessary-guide-to-the-avaya-tracesm-utility/

NEW QUESTION 5
In Avaya Aura® Communication Manager (CM) for TSAPI, which type of CTI-link needs to be configured?

• A. ASAI-IP
• B. TSAPI-IP
• C. ADJ-IP
• D. DMCC-IP

Answer: C

Explanation:
The Avaya AES server forwards CTI requests, responses, and events between Invision CTI
Server and Communication Manager. The Avaya AES server communicates with Communication Manager over an AES link. Within the AES link, CTI links may be
configured to provide CTI services to CTI applications such as Invision CTI.
Step 1: Enter the display system-parameters customer-options command. On Page 3, verify that Computer
Telephony Adjunct Links is set to y.
Step 2: Enter the add cti-link m command, where m is a number between 1 and 64, inclusive.
Enter a valid Extension under the provisioned dial plan in Avaya Communication Manager, set the Type field to ADJ-IP, and assign a descriptive Name to the CTI link.
Etc.
References: Application Notes for Invision CTI with Avaya Aura® Communication Manager and Avaya
Aura® Application Enablement Services – Issue 1.0, page 6
https://www.devconnectprogram.com/fileMedia/download/edd26666-ae98-4f15-9a2a-a156d0807160

NEW QUESTION 6
A company is deploying Avaya Session Border Controller for Enterprise (SBCE) to support SIP trunking.
What is the minimum number of IP-addresses they need to assign to the private and public Network Interface Cards (NICs)?

• A. Two addresses are assigned to the private NIC and two addresses are assigned to the public NIC.
• B. One address is assigned to the private NIC and one address is assigned to the public NIC.
• C. Two addresses are assigned to the private NIC and one address is assigned to the public NIC.
• D. One address is assigned to the private NIC and two addresses are assigned to the public NIC.

Answer: B

Explanation:

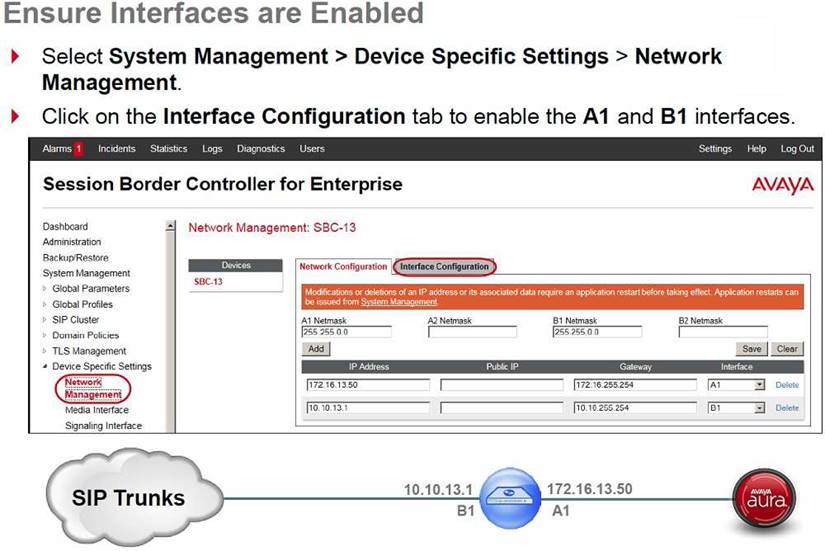

Example configuration:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 305

NEW QUESTION 7
WebRTC is used for which type of calls?

• A. video calls only
• B. calls originated from internal web browsers only
• C. calls originated from external web browsers only
• D. calls originated from internal and external web browsers

Answer: D

Explanation:
The Avaya WebRTC Snap-in enables users inside or outside the Enterprise to make a secure call from their web browser to any endpoint to which Avaya Aura can deliver calls.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 6
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 8
Which statement about Avaya Aura® Presence Services 7.x snap-in licensing is true?

• A. It requires an instance-license.
• B. It requires a per-user license.
• C. It does not require a license to work.
• D. It requires a license file for each snap-in installed.

Answer: C

Explanation:
Presence Services snap-in does not require a license to work.
References: Avaya Aura® Presence Services Snap-in Reference. Release 7.0.1 (December 2016), page 17
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 9
What is the process for establishing a command line session to the AES Management IP Address, and logging in with the default account and default password?

• A. Use PuTTY to Rlogin to > AES Management IP Addr > using port 21, then enter login=admin password=admin.
• B. Use PuTTY to SSH to > AES Management IP Addr > using port 22, then enter login=craft password=crftpw.
• C. Use PuTTY to SSH to > AES Management IP Addr > using port 22, then enter login=cust password=custpw.
• D. Use PuTTY to SSH to > AES Management IP Addr > using port 222, then enter login=admin password=admin01.

Answer: B

Explanation:
Use port 22, not port 21 or port 222.
Log in as craft and use the default password.
References: Application Enablement Services Installation and Upgrade Guide for a Bundled Server Release 4.0, page 29
https://downloads.avaya.com/elmodocs2/AES/4.0/02_300356_4.pdf

NEW QUESTION 10
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, you need to download the 46xxsettings.txt file to a Remote Worker device.
What needs to be configured under DMZ Services > Relay Services?

• A. Application Relay and File Transfer
• B. Reverse Proxy
• C. Application Relay
• D. Application Relay and Reverse Proxy

Answer: C

Explanation:
Relay Services are used to define how file transfers (e.g., for phone firmware upgrades and configuration), are routed to the Remote Worker endpoints.
Example: 2 For accessing the file server using HTTPS protocol

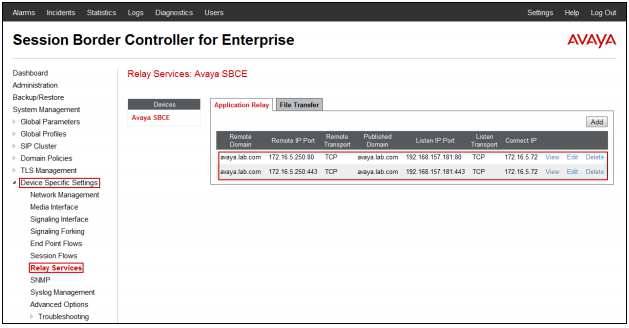

The following screenshot shows the newly created Relay Services

References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura Communication Manager Rel. 6.3 and Avaya Aura Session Managers Rel. 6.3 - Issue 1.0, page 73
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 11
To allow trust between Avaya Aura® System Manager (SMGR) and Avaya Aura® Messaging (AAM), there is a password set when you add the Trusted Server on AAM. This password must match with the password also configured in SMGR.
Which statement about the password in SMGR is true?

• A. It needs to match the Enrollment Password.
• B. It needs to match the admin password used to login to SMGR using a web browser.
• C. It needs to match the Attributes of the Messaging Managed Element in the Inventory.
• D. It needs to match the root password used to login to SMGR command line.

Answer: C

Explanation:
Configuring Messaging in the normal operational mode
Before you begin
* Add both the primary and secondary servers as Trusted Servers in the Messaging system.
* Update the Login, Password, and Confirm Password fields with the appropriate trusted server defined on the Messaging system.
Procedure
* 1. Log on to the Messaging system that System Manager manages.
* 2. Add the secondary System Manager server as Trusted Servers in the Messaging system.
* 3. Log on to the secondary System Manager server.
* 4. On the System Manager web console, click Services > Inventory.
* 5. In the left navigation pane, click Manage Elements.
* 6. On the Manage Elements page, select the Messaging system that you want to change to the secondary System Manager server.
* 7. Click Edit.
* 8. On the Attributes tab, fill the Login, Password, and Confirm Password fields with the corresponding name and password of the Messaging trusted server.
* 9. Click Commit.
* 10. Click Inventory > Synchronization > Messaging System, and select the required Messaging element.
* 11. Click Now.
The secondary System Manager server retrieves all data from Messaging and is now ready to administer and manage Messaging.
References: Administering Avaya Aura System Manager for Release 6.3.11 and later, Release 6.3, Issue 8 (November 2016), page 104
https://downloads.avaya.com/css/P8/documents/101008185

NEW QUESTION 12
In which location is the AAMS URI ‘ce-msml@avaya.com’ configured?

• A. Elements > Breeze > Configuration > HTTP Security and as a Regular Expression
• B. Elements > Breeze > Configuration > HTTP Security and as a Dial Pattern
• C. Home > Elements > Breeze > Configuration > Avaya Aura® Media Server and as a Dial Pattern
• D. Home > Elements > Breeze > Configuration > Avaya Aura® Media Server and as a Regular Expression

Answer: D

Explanation:
Creating the Avaya Aura Media Server Routing Pattern
Procedure
* 1. On System Manager, click Elements > Routing > Routing Policies .
* 2. Click New.
* 3. Type a Name for the Routing Policy.
* 4. From the SIP Entity as Destination field, click Select.
* 5. Select the Avaya Aura®
Media Server SIP Entity that you created.
Select the Local Host Name FQDN SIP Entity if you are using High Availability for the Avaya Aura®
Media Server routing.
* 6. Click Commit .
* 7. Navigate to Home > Elements > Routing > Regular Expressions and click New.
* 8. In the Pattern field, type ce-msml@<sip-domain>.*
This sip-domain value must match:
• The SIP domain that you entered in the Home > Elements > Routing > Domains page.
• The default SIP domain that you entered on the Avaya Breeze™ Cluster Administration page.
* 9. Click Commit
https://downloads.avaya.com/css/P8/documents/101014426

NEW QUESTION 13
In Avaya Session Border Controller for Enterprise (SBCE), what is the default state of an Interface?

• A. Deployed
• B. Enabled
• C. Disabled
• D. Active

Answer: C

Explanation:
Example:
Commission the SBC—SBC Configuration

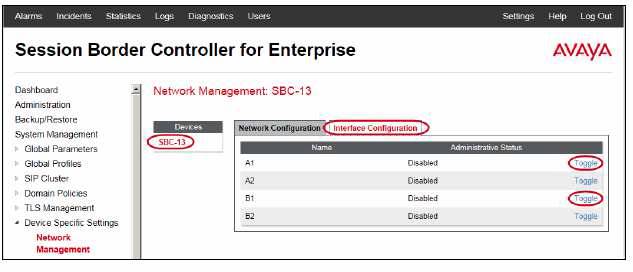

* 1. The A1 and B1 interfaces display on the Network Configuration tab.
* 2. Click on the Interface Configuration tab:

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled:
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203

NEW QUESTION 14
When looking at Avaya Aura® System Manager – Home > Services > Replication, what is the name of the replica group representing the EDP / Avaya Breeze™ instances?

• A. CollaborationEnvironment_7.0
• B. Avaya Breeze™_7.0
• C. CollaborationEnvironment_3.1
• D. Engagement Development Platform EDP_7.0

Answer: C

Explanation:
Confirming that Avaya Breeze successfully replicates with System Manager
Procedure
* 1. On the System Manager web console, navigate to Services > Replication.
* 2. In Replica Group column, click CollaborationEnvironment_3.1.
* 3. In Replica Node Host Name column, locate your newly-deployed Avaya Breeze.
* 4. After 2 – 15 minutes, verify that the status of the Synchronization Status field is green/ Synchronized. If not, see Repairing replication between Avaya Breeze™
and System Manager
References: Avaya Aura® Presence Services Snap-in Reference, Release 7.0.1, (December 2016), page 24
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 15
Which Avaya Breeze™ Cluster type is the Avaya Aura® Presence Services snap-in installed on?

• A. Presence Services
• B. Core Platform
• C. General Purpose
• D. IM_Presence

Answer: B

Explanation:
Verifying that Presence Services snap-in is ready to support Presence and IM
Procedure
* 1. On the System Manager web console, navigate to Elements > Avaya Breeze> Cluster Administration.
* 2. Locate the row for the cluster, and verify that:
* The Cluster Profile field shows Core Platform.
etc.
References: Avaya Aura® Presence Services Snap-in Reference. Release 7.0.1 (December 2016), page 224
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 16
You are creating a SIP Entity for Avaya Aura® Engagement Development Platform – EDP / Avaya Breeze™.
What do you have to enter in the field labeled FQDN or IP Address?

• A. the Management IP-Address or FQDN of the Avaya Breeze™ platform.
• B. the SM100 IP-address or FQDN of the Avaya Breeze™ platform
• C. the IP-Address or FQDN of Core Platform Cluster
• D. the IP-Address or FQDN of general Purpose Cluster

Answer: A

Explanation:
Administering an Avaya Breeze instance
Before you begin
To complete this task you will need:
* The IP address of the Avaya Breeze Management Network Interface.
This is the same IP address you used when deploying the Virtual Machine (VM).
* The IP address including the network mask, and default gateway for the Avaya Breeze Security Module.
Procedure (see step 6 below)
* 1. On System Manager, in Elements, click Avaya Breeze.
* 2. Click Server Administration.
* 3. In the Avaya Breeze Server Instances list, click New.
* 4. In the SIP Entity field, select the SIP Entity that you created.
* 5. Ensure that the value in the UCID Network Node ID field is unique across the solution deployment so that it does not conflict with other UCID-generating entities
like Avaya Aura Communication Manager or Avaya Aura Experience Portal.
* 6. In the Management Network Interface FQDN or IP Address field, type the IP address of the Avaya Breeze Management Network Interface.
References: Deploying Avaya Breeze, Release 3.1, (September 2016), page 47
https://downloads.avaya.com/css/P8/documents/101014426

NEW QUESTION 17
Which statement about WebRTC and Media Resources is true?

• A. WebRTC does not use any Media Resources since it only handles Text-Chat sessions.
• B. WebRTC relies on the Avaya Aura® Media Server (AAMS) to convert the WebRTC media stream to a SIP media stream.
• C. WebRTC uses its own embedded proprietary technology to handle and process Media Packets.
• D. WebRTC uses Media Resources from a Hard-Based Media Gateway controlled by Avaya Aura® Communication Manager (CM).

Answer: B

Explanation:
The Avaya Media Server can translate WebRTC media into a SIP media stream.
References: http://www.avaya.com/blogs/archives/2014/10/an-introduction-to-the-avaya-webrtc-snap-in.html

NEW QUESTION 18
In Avaya Aura® Messaging 6.3, which statement is true about Avaya Aura® Messaging (AAM) capacities of a system utilizing the Standard Capacity (non-High Capacity) Message Store template?

• A. One Message Store Server supports up to 60000 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• B. One Message Store Server supports up to 6000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
• C. One Message Store Server supports up to 600 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• D. One Message Store Server supports up to 1000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.

Answer: B

Explanation:
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.
Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a
dedicated AxC/Directory server for:
Release 6.2 and earlier Messaging systems with a third-party storage server.
Release 6.3 or later systems with more than one application server, or more than 6000 users using a third-party storage server, such as Microsoft Exchange.
References: Avaya Aura® Messaging Overview and Specification, Release 6.3.2 (January 2015) , page 20
https://downloads.avaya.com/css/P8/documents/101004642

NEW QUESTION 19
When configuring a SIP Entity for Avaya Aura® Messaging (AAM) in Avaya Aura® System Manager, which Type of SIP entity needs to be selected?

• A. Messaging
• B. Avaya Aura® Messaging
• C. Communication Manager Messaging
• D. OtherCorrect

Answer: D

Explanation:
Define SIP Entity
Expand Elements, Routing and select SIP Entities from the left navigation menu.
Click New (not shown). In the General section, enter the following values and use default values for remaining fields.
* Name: Enter an identifier for the SIP Entity
* FQDN or IP Address: Enter IP address of Avaya Aura® Messaging.
* Type: Select “Other”
Etc.
References: Application Notes for Configuring Avaya Aura® Messaging 6.1 as a Voice Messaging Solution for Avaya Aura® Communication Manager 6.0.1 Feature
& Evolution Server Using SIP Trunks and Avaya Aura® Session Manager 6.1 – Issue 1.0 , page 22
https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-15f4e8130a0d

NEW QUESTION 20
An Avaya Aura® Messaging (AAM) server intended to store Voice Messages in Avaya Message Store Mode, and you are configuring that server for integration with an Avaya Aura® Core.
In Messaging Administration > Server Settings > Server Role/AxC Address, which Server Role must be chosen at the “Roles for this server” field?

• A. Application Only
• B. Storage Only
• C. Storage & Application
• D. AMSM

Answer: C

Explanation:
Incorrect Answers:
B: When you select a storage-only role for the server, SMI does not display the following pages, which are specific to the application role:
* Server Information: Voice Channels (Application), and Cache Statistics (Application)
Etc.
References: Administering Avaya Aura® Messaging 6.3.3, Release 6.3.3 (February 2017), page 44
https://downloads.avaya.com/css/P8/documents/101013158

NEW QUESTION 21
For an Avaya SIP telephone, working as a Remote Worker via the Avaya Session Border Controller for Enterprise (SBCE), which IP address should be configured in the Server List of the one-X® Communicator?

• A. the SBCE Internal Interface allocated for Mobile Workspace Endpoint
• B. the SBCE External Interface allocated for Mobile Workspace Endpoint
• C. the Internal Avaya Aura® Session Manager SM100 IP Address
• D. the Avaya Aura® Session Manager External Interface allocated for Mobile Workspace Endpoints.

Answer: D

Explanation:
Remote Worker Avaya one-X Communicator Configuration
The following screens illustrate Avaya one-X Communicator administration settings for the Remote Worker used in the reference configuration.
Example:
* 1. On the Avaya one-X Communicator application running on the PC, click on the Settings icon on the top right to display the Settings window.
* 2. Click on Telephony, the General Settings window will appear. The following values were used in the reference configuration:
Under Using: select SIP (SIP must be selected; H.323 is not supported for Remote
Workers).
* Under Server List, click Add (the Add Server window to the right will appear).
* Under Proxy Server enter 192.168.157.180 (This is one of the two “public” IP addresses for interface B1 on the Avaya SBCE used for Remote Worker access to
Session Manager (public IP not used for relay services).
Etc.
References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura® Communication Manager Rel. 6.3 and Avaya
Aura® Session Managers Rel. 6.3 - Issue 1.0, page 81
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 22
By default, which Codec does Avaya Aura® Messaging (AAM) support?

• A. G.726
• B. G.722
• C. G.711
• D. G.729

Answer: C

Explanation:
You must configure the Messaging system to use the G.711 encoding format.
Note: The G.711 format provides the highest audio quality especially when voice networks use multiple encodings and decodings. Avaya requires that you use the
G.711 encoding format in Messaging systems that support TTY devices.
The G.711 encoding format uses a higher encoding rate than GSM. The G.711 encoding format therefore produces larger files and requires more storage space for
messages. Messaging provides customers with adequate storage space for message playback and networking.
References: Administering Avaya Aura® Messaging, Release 6.2 Issue 2.2 (December 2013) , page 201
https://downloads.avaya.com/css/P8/documents/100172127

NEW QUESTION 23
......
