Up To Date MuleSoft Certified Platform Architect - Level 1 MCPA-Level-1 Practice Question

NEW QUESTION 1
Question 10: Skipped

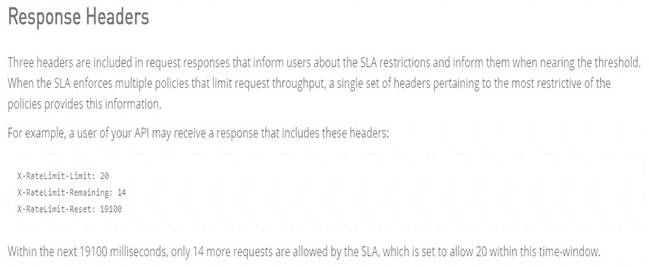

An API implementation returns three X-RateLimit-* HTTP response headers to a requesting API client. What type of information do these response headers indicate to the API client?

• A. The error codes that result from throttling
• B. A correlation ID that should be sent in the next request
• C. The HTTP response size
• D. The remaining capacity allowed by the API implementation

Answer: D

Explanation:

Correct Answer
The remaining capacity allowed by the API implementation.
*****************************************
>> Reference:
https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

NEW QUESTION 2
A company requires Mule applications deployed to CloudHub to be isolated between non-production and production environments. This is so Mule applications deployed to non-production environments can only access backend systems running in their customer-hosted non-production environment, and so Mule applications deployed to production environments can only access backend systems running in their customer-hosted production environment. How does MuleSoft recommend modifying Mule applications,
configuring environments, or changing infrastructure to support this type of per-environment isolation between Mule applications and backend systems?

• A. Modify properties of Mule applications deployed to the production Anypoint Platform environments to prevent access from non-production Mule applications
• B. Configure firewall rules in the infrastructure inside each customer-hosted environment so that only IP addresses from the corresponding Anypoint Platform environments are allowed to communicate with corresponding backend systems
• C. Create non-production and production environments in different Anypoint Platform business groups
• D. Create separate Anypoint VPCs for non-production and production environments, then configure connections to the backend systems in the corresponding customer-hosted environments

Answer: D

Explanation:
Correct Answer
Create separate Anypoint VPCs for non-production and production environments, then configure connections to the backend systems in the corresponding customer-hosted environments.
*****************************************
>> Creating different Business Groups does NOT make any difference w.r.t accessing the non-prod and prod customer-hosted environments. Still they will be accessing from both Business Groups unless process network restrictions are put in place.
>> We need to modify or couple the Mule Application Implementations with the environment. In fact, we should never implements application coupled with environments by binding them in the properties. Only basic things like endpoint URL etc should be bundled in properties but not environment level access restrictions.
>> IP addresses on CloudHub are dynamic until unless a special static addresses are assigned. So it is not possible to setup firewall rules in customer-hosted infrastrcture. More over, even if static IP addresses are assigned, there could be 100s of applications running on cloudhub and setting up rules for all of them would be a hectic task, non-maintainable and definitely got a good practice.
>> Thbeest practice recommended
by MulesoftIn( fact any cloud provider), is to have your Anypoint VPCs
seperated for Prod and Non-Prod and perform the VPC peering or VPN tunneling for these Anypoint VPCs to respective Prod and Non-Prod customer-hosted environment networks.

NEW QUESTION 3
A retail company is using an Order API to accept new orders. The Order API uses a JMS queue to submit orders to a backend order management service. The normal load for orders is being handled using two (2) CloudHub workers, each configured with 0.2 vCore. The CPU load of each CloudHub worker normally runs well below 70%. However, several times during the year the Order API gets four times (4x) the average number of orders. This causes the CloudHub worker CPU load to exceed 90% and the order submission time to exceed 30 seconds. The cause, however, is NOT the backend order management service, which still responds fast enough to meet the response SLA for the Order API. What is the MOST resource-efficient way to configure the Mule application's CloudHub deployment to help the company cope with this performance challenge?

• A. Permanently increase the size of each of the two (2) CloudHub workers by at least four times (4x) to one(1) vCore
• B. Use a vertical CloudHub autoscaling policy that triggers on CPU utilization greater than 70%
• C. Permanently increase the number of CloudHub workers by four times (4x) to eight (8) CloudHub workers
• D. Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%

Answer: D

Explanation:

Correct Answer
Use a horizontal CloudHub autoscaling policy that triggers on CPU utilization greater than 70%
*****************************************
The scenario in the question is very clearly stating that the usual traffic in the year is pretty well handled by the existing worker configuration with CPU running well below 70%. The problem occurs only "sometimes" occasionally when there is spike in the number of orders coming in.
So, based on above, We neither need to permanently increase the size of each worker nor need to permanently increase the number of workers. This is unnecessary as other than those "occasional" times the resources are idle and wasted.
We have two options left now. Either to use horizontal Cloudhub autoscaling policy to automatically increase the number of workers or to use vertical Cloudhub autoscaling policy to automatically increase the vCore size of each worker.
Here, we need to take two things into consideration:
* 1. CPU
* 2. Order Submission Rate to JMS Queue
>> From CPU perspective, both the options (horizontal and vertical scaling) solves the issue. Both helps to bring down the usage below 90%.
>> However, If we go with Vertical Scaling, then from Order Submission Rate perspective, as the application is still being load balanced with two workers only, there may not be much improvement in the incoming request processing rate and order submission rate to JMS queue. The throughput would be same as before. Only CPU utilization comes down.
>> But, if we go with Horizontal Scaling, it will spawn new workers and adds extra hand to increase the throughput as more workers are being load balanced now. This way we can address both CPU and Order Submission rate.
Hence, Horizontal CloudHub Autoscaling policy is the right and best answer.

NEW QUESTION 4
An API experiences a high rate of client requests (TPS) vwth small message paytoads. How can usage limits be imposed on the API based on the type of client application?

• A. Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type
• B. Use a spike control policy that limits the number of requests for each client application type
• C. Use a cross-origin resource sharing (CORS) policy to limit resource sharing between client applications, configured by the client application type
• D. Use a rate limiting policy and a client ID enforcement policy, each configured by the client application type

Answer: A

Explanation:
Correct Answer
Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type.
*****************************************
>> SLA tiers will come into play whenever any limits to be imposed on APIs based on client type

NEW QUESTION 5
An API has been updated in Anypoint Exchange by its API producer from version 3.1.1 to 3.2.0 following accepted semantic versioning practices and the changes have been communicated via the API's public portal.
The API endpoint does NOT change in the new version.
How should the developer of an API client respond to this change?

• A. The update should be identified as a project risk and full regression testing of the functionality that uses this API should be run
• B. The API producer should be contacted to understand the change to existing functionality
• C. The API producer should be requested to run the old version in parallel with the new one
• D. The API client code ONLY needs to be changed if it needs to take advantage of new features

Answer: D

NEW QUESTION 6
What is typically NOT a function of the APIs created within the framework called API-led connectivity?

• A. They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
• B. They allow for innovation at the user Interface level by consuming the underlying assets without being aware of how data Is being extracted from backend systems.
• C. They reduce the dependency on the underlying backend systems by helping unlock data from backend systems In a reusable and consumable way.
• D. They can compose data from various sources and combine them with orchestration logic to create higher level value.

Answer: A

Explanation:

Correct Answer
They provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
***************************************** In API-led connectivity,
>> Experience APIs - allow for innovation at the user interface level by consuming the underlying assets without being aware of how data is being extracted from backend systems.
>> Process APIs - compose data from various sources and combine them with orchestration logic to create higher level value
>> System APIs - reduce the dependency on the underlying backend systems by helping unlock data from backend systems in a reusable and consumable way.
However, they NEVER promise that they provide an additional layer of resilience on top of the underlying backend system, thereby insulating clients from extended failure of these systems.
https://dzone.com/articles/api-led-connectivity-with-mule

NEW QUESTION 7
A company uses a hybrid Anypoint Platform deployment model that combines the EU control plane with customer-hosted Mule runtimes. After successfully testing a Mule API implementation in the Staging environment, the Mule API implementation is set with environment-specific properties and must be promoted to the Production environment. What is a way that MuleSoft recommends to configure the Mule API implementation and automate its promotion to the Production environment?

• A. Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIsB.
• B. Modify the Mule API implementation's properties in the API Manager Properties tab, then promote the Mule API implementation to the Production environment using API Manager
• C. Modify the Mule API implementation's properties in Anypoint Exchange, then promote the Mule API implementation to the Production environment using Runtime Manager
• D. Use an API policy to change properties in the Mule API implementation deployed to the Staging environment and another API policy to deploy the Mule API implementation to the Production environment

Answer: A

Explanation:

Correct Answer
Bundle properties files for each environment into the Mule API implementation's deployable archive, then promote the Mule API implementation to the Production environment using Anypoint CLI or the Anypoint Platform REST APIs
*****************************************
>> Anypoint Exchange is for asset discovery and documentation. It has got no provision to modify the properties of Mule API implementations at all.
>> API Manager is for managing API instances, their contracts, policies and SLAs. It has also got no provision to modify the properties of API implementations.
>> API policies are to address Non-functional requirements of APIs and has again got no provision to modify the properties of API implementations.
So, the right way and recommended way to do this as part of development practice is to bundle properties files for each environment into the Mule API implementation and just point and refer to respective file per environment.

NEW QUESTION 8
An Order API must be designed that contains significant amounts of integration logic and involves the invocation of the Product API.
The power relationship between Order API and Product API is one of "Customer/Supplier", because the Product API is used heavily throughout the organization and is developed by a dedicated development team located in the office of the CTO.
What strategy should be used to deal with the API data model of the Product API within the Order API?

• A. Convince the development team of the Product API to adopt the API data model of the Order API such that the integration logic of the Order API can work with one consistent internal data model
• B. Work with the API data types of the Product API directly when implementing the integration logic of the Order API such that the Order API uses the same (unchanged) data types as the Product API
• C. Implement an anti-corruption layer in the Order API that transforms the Product API data model into internal data types of the Order API
• D. Start an organization-wide data modeling initiative that will result in an Enterprise Data Model that will then be used in both the Product API and the Order API

Answer: C

Explanation:

Correct Answer
Convince the development team of the product API to adopt the API data model of the Order API such that integration logic of the Order API can work with one consistent internal data model
***************************************** Key details to note from the given scenario:
>> Power relationship between Order API and Product API is customer/supplier
So, as per below rules of "Power Relationships", the caller (in this case Order API) would request for features to the called (Product API team) and the Product API team would need to accomodate those requests.

NEW QUESTION 9
A REST API is being designed to implement a Mule application.
What standard interface definition language can be used to define REST APIs?

• A. Web Service Definition Language(WSDL)
• B. OpenAPI Specification (OAS)
• C. YAML
• D. AsyncAPI Specification

Answer: B

NEW QUESTION 10
What is true about API implementations when dealing with legal regulations that require all data processing to be performed within a certain jurisdiction (such as in the USA or the EU)?

• A. They must avoid using the Object Store as it depends on services deployed ONLY to the US East region
• B. They must use a Jurisdiction-local external messaging system such as Active MQ rather than Anypoint MQ
• C. They must te deployed to Anypoint Platform runtime planes that are managed by Anypoint Platform control planes, with both planes in the same Jurisdiction
• D. They must ensure ALL data is encrypted both in transit and at rest

Answer: C

Explanation:

Correct Answer
They must be deployed to Anypoint Platform runtime planes that are managed by Anypoint Platform control planes, with both planes in the same Jurisdiction.
*****************************************
>> As per legal regulations, all data processing to be performed within a certain jurisdiction. Meaning, the data in USA should reside within USA and should not go out. Same way, the data in EU should reside within EU and should not go out.
>> So, just encrypting the data in transit and at rest does not help to be compliant with the rules. We need to make sure that data does not go out too.
>> The data that we are talking here is not just about the messages that are published to Anypoint MQ. It
includes the apps running, transaction states, application logs, events, metric info and any other metadata. So, just replacing Anypoint MQ with a locally hosted ActiveMQ does NOT help.
>> The data that we are talking here is not just about the key/value pairs that are stored in Object Store. It includes the messages published, apps running, transaction states, application logs, events, metric info and any other metadata. So, just avoiding using Object Store does NOT help.
>> The only option left and also the right option in the given choices is to deploy application on runtime and control planes that are both within the jurisdiction.

NEW QUESTION 11
A Mule application exposes an HTTPS endpoint and is deployed to the CloudHub Shared Worker Cloud. All traffic to that Mule application must stay inside the AWS VPC.
To what TCP port do API invocations to that Mule application need to be sent?

• A. 443
• B. 8081
• C. 8091
• D. 8082

Answer: D

Explanation:
Correct Answer 8082
*****************************************
>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.
>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.
>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB
>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB So, API invocations should be sent to port 8082 when calling this HTTPS based app.
References:
https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-An
https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-p

NEW QUESTION 12
What are 4 important Platform Capabilities offered by Anypoint Platform?

• A. API Versioning, API Runtime Execution and Hosting, API Invocation, API Consumer Engagement
• B. API Design and Development, API Runtime Execution and Hosting, API Versioning, API Deprecation
• C. API Design and Development, API Runtime Execution and Hosting, API Operations and Management, API Consumer Engagement
• D. API Design and Development, API Deprecation, API Versioning, API Consumer Engagement

Answer: C

Explanation:

Correct Answer
API Design and Development, API Runtime Execution and Hosting, API Operations and Management, API Consumer Engagement
*****************************************
>> API Design and Development - Anypoint Studio, Anypoint Design Center, Anypoint Connectors
>> API Runtime Execution and Hosting - Mule Runtimes, CloudHub, Runtime Services
>> API Operations and Management - Anypoint API Manager, Anypoint Exchange
>> API Consumer Management - API Contracts, Public Portals, Anypoint Exchange, API Notebooks

NEW QUESTION 13
What CANNOT be effectively enforced using an API policy in Anypoint Platform?

• A. Guarding against Denial of Service attacks
• B. Maintaining tamper-proof credentials between APIs
• C. Logging HTTP requests and responses
• D. Backend system overloading

Answer: A

Explanation:
Correct Answer
Guarding against Denial of Service attacks
*****************************************
>> Backend system overloading can be handled by enforcing "Spike Control Policy"
>> Logging HTTP requests and responses can be done by enforcing "Message Logging Policy"
>> Credentials can be tamper-proofed using "Security" and "Compliance" Policies
However, unfortunately, there is no proper way currently on Anypoint Platform to guard against DOS attacks.

NEW QUESTION 14
When must an API implementation be deployed to an Anypoint VPC?

• A. When the API Implementation must invoke publicly exposed services that are deployed outside of CloudHub in a customer- managed AWS instance
• B. When the API implementation must be accessible within a subnet of a restricted customer-hosted network that does not allow public access
• C. When the API implementation must be deployed to a production AWS VPC using the Mule Maven plugin
• D. When the API Implementation must write to a persistent Object Store

Answer: A

NEW QUESTION 15
What best describes the Fully Qualified Domain Names (FQDNs), also known as DNS entries, created when a Mule application is deployed to the CloudHub Shared Worker Cloud?

• A. A fixed number of FQDNs are created, IRRESPECTIVE of the environment and VPC design
• B. The FQDNs are determined by the application name chosen, IRRESPECTIVE of the region
• C. The FQDNs are determined by the application name, but can be modified by an administrator after deployment
• D. The FQDNs are determined by both the application name and the Anypoint Platform organization

Answer: B

Explanation:

Correct Answer
The FQDNs are determined by the application name chosen, IRRESPECTIVE of the region
*****************************************
>> When deploying applications to Shared Worker Cloud, the FQDN are always determined by application name chosen.
>> It does NOT matter what region the app is being deployed to.
>> Although it is fact and true that the generated FQDN will have the region included in it (Ex:
exp-salesorder-api.au-s1.cloudhub.io), it does NOT mean that the same name can be used when deploying to another CloudHub region.
>> Application name should be universally unique irrespective of Region and Organization and solely determines the FQDN for Shared Load Balancers.

NEW QUESTION 16
In which layer of API-led connectivity, does the business logic orchestration reside?

• A. System Layer
• B. Experience Layer
• C. Process Layer

Answer: C

Explanation:

Correct Answer
Process Layer
*****************************************
>> Experience layer is dedicated for enrichment of end user experience. This layer is to meet the needs of different API clients/ consumers.
>> System layer is dedicated to APIs which are modular in nature and implement/ expose various individual functionalities of backend systems
>> Process layer is the place where simple or complex business orchestration logic is written by invoking one or many System layer modular APIs
So, Process Layer is the right answer.

NEW QUESTION 17
An organization has created an API-led architecture that uses various API layers to integrate mobile clients with a backend system. The backend system consists of a number of specialized components and can be accessed via a REST API. The process and experience APIs share the same bounded-context model that is different from the backend data model. What additional canonical models, bounded-context models, or anti-corruption layers are best added to this architecture to help process data consumed from the backend system?

• A. Create a bounded-context model for every layer and overlap them when the boundary contexts overlap, letting API developers know about the differences between upstream and downstream data models
• B. Create a canonical model that combines the backend and API-led models to simplify and unify data models, and minimize data transformations.
• C. Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers
• D. Create an anti-corruption layer for every API to perform transformation for every data model to match each other, and let data simply travel between APIs to avoid the complexity and overhead of building canonical models

Answer: C

Explanation:
Correct Answer
Create a bounded-context model for the system layer to closely match the backend data model, and add an anti-corruption layer to let the different bounded contexts cooperate across the system and process layers
*****************************************
>> Canonical models are not an option here as the organization has already put in efforts and created bounded-context models for Experience and Process APIs.
>> Anti-corruption layers for ALL APIs is unnecessary and invalid because it is mentioned that experience and process APIs share same bounded-context model. It is just the System layer APIs that need to choose their approach now.
>> So, having an anti-corruption layer just between the process and system layers will work well. Also to speed up the approach, system APIs can mimic the backend system data model.

NEW QUESTION 18
What should be ensured before sharing an API through a public Anypoint Exchange portal?

• A. The visibility level of the API instances of that API that need to be publicly accessible should be set to public visibility
• B. The users needing access to the API should be added to the appropriate role in Anypoint Platform
• C. The API should be functional with at least an initial implementation deployed and accessible for users to interact with
• D. The API should be secured using one of the supported authentication/authorization mechanisms to ensure that data is not compromised

Answer: A

Explanation:


Correct Answer

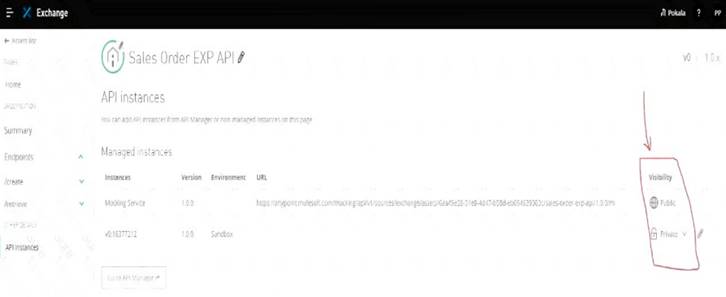

The visibility level of the API instances of that API that need to be publicly accessible should be set to public visibility.
*****************************************

NEW QUESTION 19

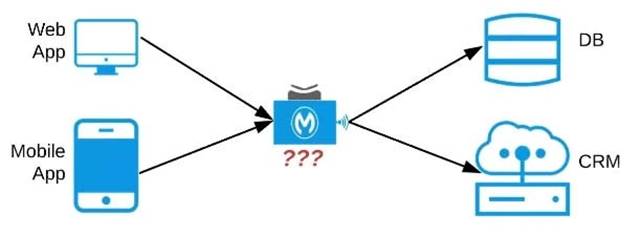

Refer to the exhibit. An organization needs to enable access to their customer data from both a mobile app and a web application, which each need access to common fields as well as certain unique fields.
The data is available partially in a database and partially in a 3rd-party CRM system.
What APIs should be created to best fit these design requirements?

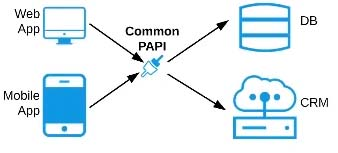

A) A Process API that contains the data required by both the web and mobile apps, allowing these applications to invoke it directly and access the data they need thereby providing the flexibility to add more fields in the future without needing API changes

B) One set of APIs (Experience API, Process API, and System API) for the web app, and another set for the mobile app

C) Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system

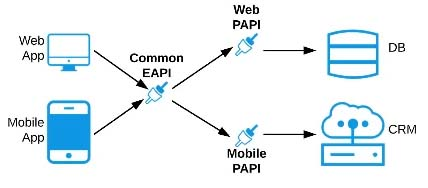

D) A common Experience API used by both the web and mobile apps, but separate Process APIs for the web and mobile apps that interact with the database and the CRM System

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: C

Explanation:

Correct Answer
Separate Experience APIs for the mobile and web app, but a common Process API that invokes separate System APIs created for the database and CRM system
***************************************** As per MuleSoft's API-led connectivity:
>> Experience APIs should be built as per each consumer needs and their experience.
>> Process APIs should contain all the orchestration logic to achieve the business functionality.
>> System APIs should be built for each backend system to unlock their data.

NEW QUESTION 20

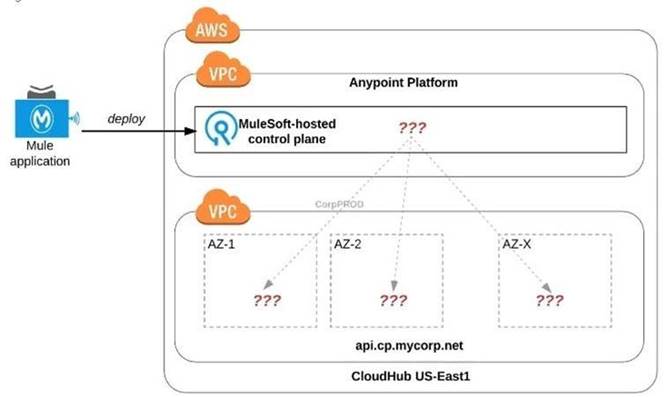

Refer to the exhibit.

An organization uses one specific CloudHub (AWS) region for all CloudHub deployments.
How are CloudHub workers assigned to availability zones (AZs) when the organization's Mule applications are deployed to CloudHub in that region?

• A. Workers belonging to a given environment are assigned to the same AZ within that region
• B. AZs are selected as part of the Mule application's deployment configuration
• C. Workers are randomly distributed across available AZs within that region
• D. An AZ is randomly selected for a Mule application, and all the Mule application's CloudHub workers are assigned to that one AZ

Answer: D

Explanation:
Correct Answer
Workers are randomly distributed across available AZs within that region.
*****************************************
>> Currently, we only have control to choose which AWS Region to choose but there is no control at all using any configurations or deployment options to decide what Availability Zone (AZ) to assign to what worker.
>> There arNe O
fixed or implicit rules on platform too w.r.t assignment of AZ to workers based on
environment or application.
>> They are completely assigned inrandom. However, cloudhub definitely ensures that HA is achieved by assigning the workers to more than on AZ so that all workers are not assigned to same AZ for same application.

NEW QUESTION 21
......
