How Many Questions Of NS0-520 Test Questions

NEW QUESTION 1

You must relocate a LUN from one AFF A700 HA pair to another AFF A300 HA pair while preserving all storage efficiencies. What are two ways to accomplish this task? (Choose two.)

• A. Copy the volume.
• B. Copy the LUN.
• C. Move the volume.
• D. Move the LUN.

Answer: AB

NEW QUESTION 2

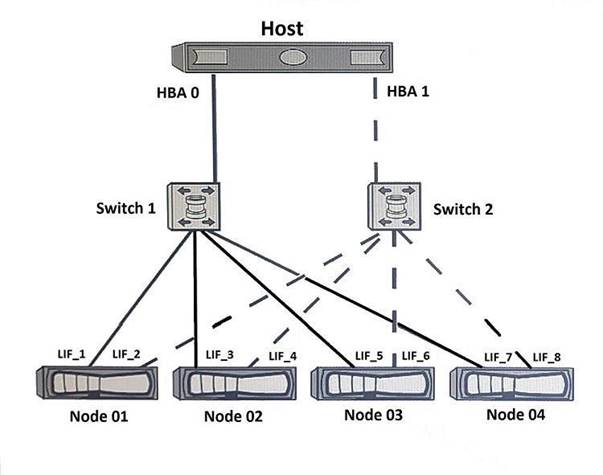

You configured a SAN host with a 4-node ONTAP 9.5 cluster that uses default settings. All paths are available from the host to the four nodes. You have a requirement to see only two paths to each LUN. One path is optimized and the other is non-optimized.
In this scenario, which NetApp SAN feature supports this requirement?

• A. portsets
• B. SLM
• C. VLANs
• D. igroups

Answer: C

NEW QUESTION 3

Which formula is appropriate for calculating target port Queue Depth?

• A. The number of LIFs using a physical port * 256
• B. The sum of the Queue Depth setting for all hosts using a physical port
• C. The number of LIFs using the physical port * Maximum Host HBA Queue Depth setting
• D. The number of physical ports * 2048

Answer: C

NEW QUESTION 4

You are planning few a new AFF A700 2-node switchless FC solution with two Cisco 9100 switches. Each AFF A700 will have one 16 Gb port Connected to each Cisco 9100 switch and four FC LIKs per physical port. You want to guarantee recovery from connection loss on a NetApp physical port and you are using single initiator to multiple target zoning.
What is the minimum number of zones required to accomplish this task?

• A. 8
• B. 4
• C. 2
• D. 1

Answer: C

NEW QUESTION 5

When planning out a new FC SAN implementation for a AFF cluster, which two variables should be considered for a highly-available, resilient solution? (Choose two.)

• A. Length of LC/LC optic cables
• B. Multiple disk shelves
• C. Multiple PDUs connected to separate circuits
• D. Data-fabric zones using multiple switches

Answer: CD

NEW QUESTION 6

You create a 20 GB LUN in a newly created 100 GB FlexVol volume. You then write 5 GB of data to the LUN. You have space reservation disabled on the LUN.
In this scenario, how much space do you have left on the volume?

• A. 95 GB
• B. 80 GB
• C. 75 GB
• D. 85 GB

Answer: A

Explanation:
Reference: https://library.netapp.com/ecmdocs/ECMP1368017/html/GUID-0E0B085C-5A42-43F3-9CCD- 4FD699BA6C89.html

NEW QUESTION 7

During testing, an administrator notices that the wrong subsystem was returned using the NVMe discover command. The administrator was expecting test0_subsystem as the subsystem

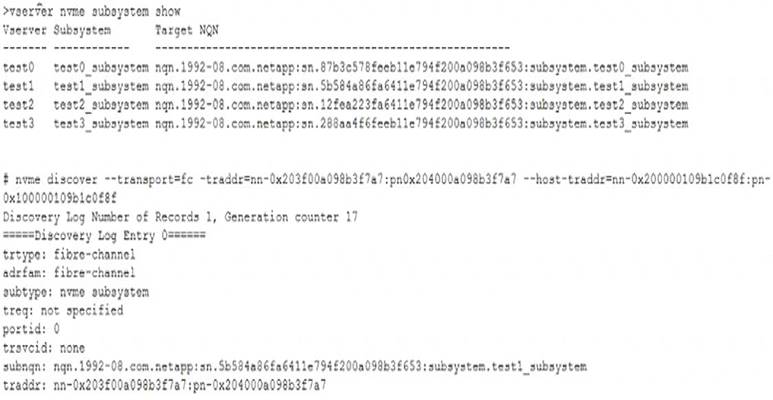

Referring to the exhibit, what would cause the discrepancy?

• A. The wrong NQN was mapped to the subsystem
• B. The wrong WWPN was used in the discovery command
• C. Asymmetric Namespace Access (ANA) was not properly configured
• D. The NVMe was not configured on the test0 SVM

Answer: A

Explanation:
We can discard that ANA was not properly configured becase this is not a problem about multipathing. We can discard WWPN because this is an NVMe configuration where WWPN is not involved
We can discard that NVMe was not configured because we wouldn't be able to even run that command if that's true
Configure the NQN correctly is one of the steps when we configure NVMe You can find more information on this link:
http://senthil-it-infrastructure.blogspot.com/2020/05/netapp-ontap-97-nvme-configuration-and.html

NEW QUESTION 8


A customer wants to add a 2-port, 32 Gb FC card to support NVMe in an AFF A700 2-node cluster. Currently, there are cards in slots 1, 2, 4, 6, 8, and 9.

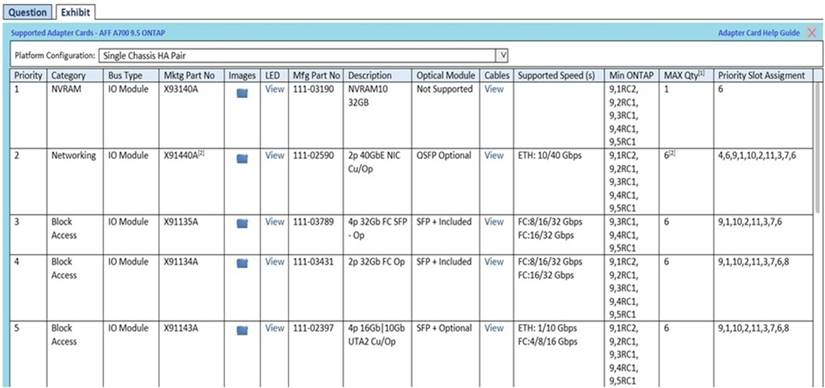

Referring to the exhibit, what is the number of the slot that should be used?

• A. 10
• B. 3
• C. 5
• D. 7

Answer: C

NEW QUESTION 9

Which two requirements must be satisfied to run an Upgrade Advisor report on a Netapp All SAN Array? (choose two)

• A. The cluster nodes must have a valid support contract
• B. Autosupport must be enabled
• C. The vsadmin account must be enabled
• D. The Connectivity, Liveness, Availability Monitor (CLAM) must be enabled

Answer: AB

Explanation:
To run Active IQ Upgrade Advisor the cluster must have a valid contract, and this tool gets information from Autosupport
Active IQ Digital Advisor shows systems with a valid support contract. You can find more information on this link:
https://kb.netapp.com/Advice_and_Troubleshooting/Data_Storage_Software/ONTAP_OS/How_does_Active_I

NEW QUESTION 10

Which native GUI switch tool is used to manage Cisco MDS-Series switches and directors?

• A. Operations Manager
• B. Fabric Manager
• C. Web Tools
• D. Data Fabric Manager

Answer: B

NEW QUESTION 11

A customer's Red Hat Linux 7.0 server's Linux native DM-MP settings for multi pa thing have not been set correctly. In this scenario, what would cause this problem?

• A. The multi path, conf file contains the blacklist stanza.
• B. Challenge-Handshake Authentication Protocol (CHAP) is not enabled.
• C. The rdloaddriver=scsi_dh_alua was not added to the end of the boot loader file.
• D. The incorrect WWID was added to the multipath.conf file.

Answer: D

NEW QUESTION 12

What does the space allocation argument in a lun create command do?

• A. It thick provisions the LUN.
• B. It only disables space reclamation (or the LUN.
• C. It thin provisions the LUN,
• D. It enables or disables space reclamation for the LUN

Answer: D

NEW QUESTION 13

You are planning to implement a 32 Gb FC SAN on a 2-node AFF A700 ONTAP 9.5 cluster. You need to create 112 FC LIFs across the HA pair with a limit of 20 FC LIFs per physical HBA port.
In this scenario, how many 2-port 32 Gb HBA cards do you need per storage controller?

• A. 2
• B. 1
• C. 4
• D. 3

Answer: A

NEW QUESTION 14

A customer is planning to connect a Linux server to a FAS8200 using Brocade FC switches. During the initial configuration, the SVM does not log in to the fabric.
Which two statements are correct in this scenario? (Choose two.)

• A. NPIV has not been enabled on the switches.
• B. The switch port topology is set incorrectly to the E_Port.
• C. ALUA has not been set up on the FAS8200.
• D. Zoning is incorrectly configured between the Linux server and the ONTAP cluster.

Answer: AC

NEW QUESTION 15

Exhibit.

Referring to the exhibit, which two statements are true? (Choose two.)

• A. The volume guarantee has no effect.
• B. LUN overwrites are guaranteed.
• C. The LUN might run out of space.
• D. The LUN space reservation has no effect.

Answer: BC

NEW QUESTION 16

What are two considerations when creating a physical reference drawing for adding an ASA AFF A700 system to your existing FC SAN environment? (Choose two)

• A. available cooling
• B. Hardware Compatibility
• C. available rack space
• D. switch connectivity

Answer: CD

Explanation:
A physical reference drawing should be used to know the rack space and the distance between that space and the equipment to which it will be connected ... Being an ASA, it must be connected to a SAN
switch

NEW QUESTION 17

You have finished deploying a Netapp AFF All SAN Array Cluster and want to test the persistent ports feature. In this scenario, how would you accomplish this task?

• A. Perform a takeover of a node
• B. Disconnect an FCP initiator port
• C. Disconnect an FCP target port
• D. Disable a SAN LIF

Answer: A

Explanation:
If we don't have OnCommand Insight, then we should not pull out a cable as test because it won't be detected properly.

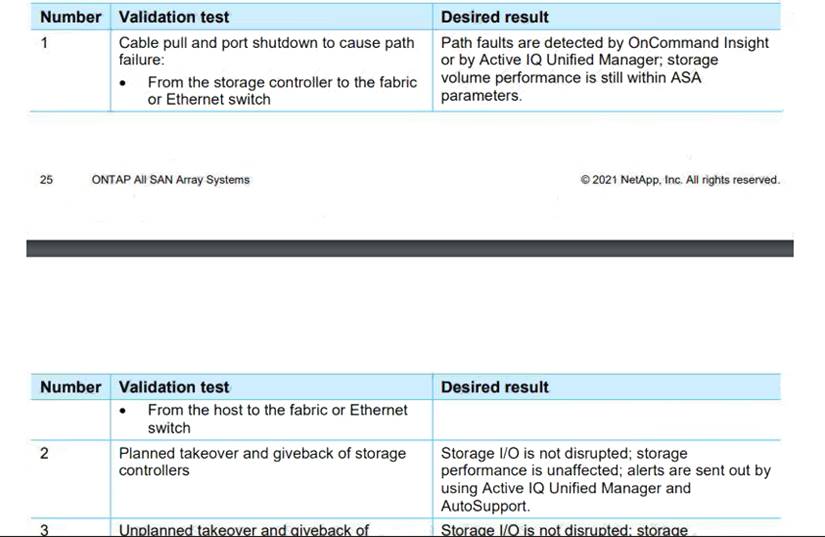

Doing a planned takeover will meet the requirements asked. Table Description automatically generated

You can find more information on this link: https://www.netapp.com/pdf.html?item=/media/10379-tr4515.pdf&v=20217121554 (26)
