The Up To The Minute Guide To NSE7_EFW-6.2 Study Guide

NEW QUESTION 1
View the exhibit, which contains the output of a debug command, and then answer the question below.

What statement is correct about this FortiGate?

• A. It is currently in system conserve mode because of high CPU usage.
• B. It is currently in FD conserve mode.
• C. It is currently in kernel conserve mode because of high memory usage.
• D. It iscurrently in system conserve mode because of high memory usage.

Answer: D

NEW QUESTION 2
What configuration changes can reduce the memory utilization in aFortiGate? (Choose two.)

• A. Reduce the session time to live.
• B. Increase the TCP session timers.
• C. Increase the FortiGuard cache time to live.
• D. Reduce the maximum file size to inspect.

Answer: AD

NEW QUESTION 3
A corporate network allows Internet Access to FSSO users only. The FSSO user student does not have Internet access after successfully logged into the Windows AD network. The output of the ‘diagnose debug authd fsso list’ command does not show student as an active FSSO user. Other FSSO users can access the Internet without problems. What should the administrator check? (Choose two.)

• A. The user student must not be listed in the CA’s ignore user list.
• B. The user student must belong to one or more of the monitored user groups.
• C. The student workstation’s IP subnet must be listed in the CA’s trusted list.
• D. At least one of the student’s user groups must be allowed by a FortiGate firewall policy.

Answer: AD

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD38828

NEW QUESTION 4
What conditions are required for two FortiGate devices to form an OSPF adjacency? (Choose three.)

• A. IP addresses are in the same subnet.
• B. Helloand dead intervals match.
• C. OSPF IP MTUs match.
• D. OSPF peer IDs match.
• E. OSPF costs match.

Answer: ABC

Explanation:
https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-advanced-routing-54/Routing_OSPF/OSPF_Bac

NEW QUESTION 5
When does a RADIUS server send an Access-Challenge packet?

• A. The server does not have the usercredentials yet.
• B. The server requires more information from the user, such as the token code for two-factor authentication.
• C. The user credentials are wrong.
• D. The user account is not found in the server.

Answer: B

NEW QUESTION 6
An administrator has configured a dial-up IPsec VPN with one phase 2, extended authentication (XAuth) and IKE mode configuration. The administrator has also enabled the IKE real time debug:
diagnose debug application ike-1 diagnose debug enable
In which order is each step and phase displayed in the debug output each time a new dial-up user is connecting to the VPN?

• A. Phase1; IKE mode configuration; XAuth; phase 2.
• B. Phase1; XAuth; IKE mode configuration; phase2.
• C. Phase1; XAuth; phase 2; IKE mode configuration.
• D. Phase1; IKE mode configuration; phase 2; XAuth.

Answer: B

Explanation:
https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-ipsecvpn-54/IPsec_VPN_Concepts/IKE_Packet

NEW QUESTION 7
Which real time debug should an administrator enable to troubleshoot RADIUSauthentication problems?

• A. Diagnose debug application radius -1.
• B. Diagnose debug application fnbamd -1.
• C. Diagnose authd console –log enable.
• D. Diagnose radius console –log enable.

Answer: B

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD32838

NEW QUESTION 8
Which statements about bulk configuration changes using FortiManager CLI scripts are correct? (Choose two.)

• A. When executed on the Policy Package,ADOM database, changes are applied directly to the managed FortiGate.
• B. When executed on the Device Database, you must use the installation wizard to apply the changes to the managed FortiGate.
• C. When executed on the All FortiGate in ADOM, changes are automatically installed without creating a new revision history.
• D. When executed on the Remote FortiGate directly, administrators do not have the option to review the changes prior to installation.

Answer: BD

Explanation:
CLI scripts can be run in threedifferent ways:Device Database: By default, a script is executed on the device database. It is recommend you run the changes on the device database (default setting), as this allows you to check what configuration changes you will send to the managed device. Once scripts are run on the device database, you can install these changes to a managed device using the installation wizard.
Policy Package, ADOM database: If a script contains changes related to ADOM level objects and policies, you can change the default selection to run on Policy Package, ADOM database and can then be installed using the installation wizard.
Remote FortiGate directly (through CLI): A script can be executed directly on the device and you don’t need to install these changes using theinstallation wizard. As the changes are directly installed on the managed device, no option is provided to verify and check the configuration changes through FortiManager prior to executing it.

NEW QUESTION 9
A FortiGate is rebooting unexpectedly without any apparent reason. What troubleshooting tools could an administrator use to get more information about the problem? (Choose two.)

• A. Firewall monitor.
• B. Policy monitor.
• C. Logs.
• D. Crashlogs.

Answer: CD

NEW QUESTION 10
What events are recorded in the crashlogs of a FortiGate device? (Choose two.)

• A. A process crash.
• B. Configuration changes.
• C. Changes in the status of any of the FortiGuard licenses.
• D. System entering to and leaving from the proxy conserve mode.

Answer: AD

Explanation:
diagnose debug crashlog read
275: 2014-08-05 13:03:53 proxy=acceptorservice=imap session fail mode=activated276: 2014-08-05
13:03:53 proxy=acceptor service=ftp session fail mode=activated277: 2014-08-05 13:03:53 proxy=acceptor service=nntp session fail mode=activated278: 2014-08-06 11:05:47 service=kernel conserve=on free=”45034 pages” red=”45874 pages” msg=”Kernel279: 2014-08-06 11:05:47 enters conserve mode”280: 2014-08-06 13:07:16 service=kernel conserve=exit free=”86704 pages” green=”68811 pages”281: 2014-08-06 13:07:16 msg=”Kernel leaves conserve mode”282: 2014-08-06
13:07:16 proxy=imd sysconserve=exited total=1008 free=349 marginenter=201283: 2014-08-06 13:07:16 marginexit=302

NEW QUESTION 11
Which configuration can be used to reduce the number of BGP sessions in an IBGP network?

• A. Neighbor range
• B. Route reflector
• C. Next-hop-self
• D. Neighbor group

Answer: B

Explanation:
Route reflectors help to reduce the number of IBGP sessions inside an AS. A route reflector forwards the routers learned from one peer to the other peers. If you configure route reflectors, you dont’ need to create a full mesh IBGP network. All clients in a cluster only talck to route reflector to get sync routing updates. Route reflectors pass the routing updates to other route reflectors and border routers within the AS.

NEW QUESTION 12
An administrator is running the following sniffer in a FortiGate: diagnose sniffer packet any “host 10.0.2.10” 2
What information is included in the output of the sniffer? (Choose two.)

• A. Ethernet headers.
• B. IP payload.
• C. IPheaders.
• D. Port names.

Answer: BC

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11186

NEW QUESTION 13

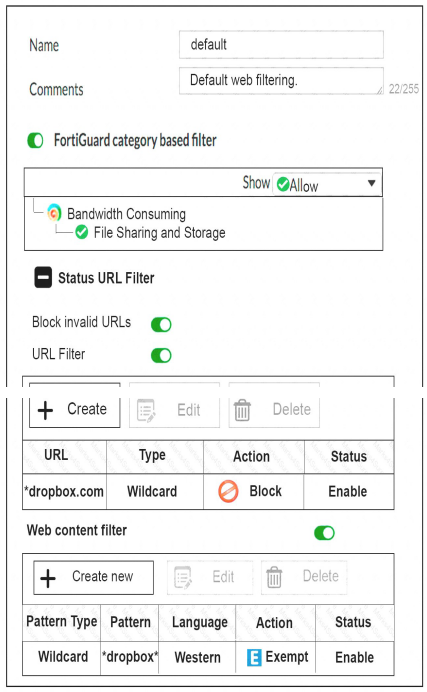

View the exhibit, which contains a partial web filter profile configuration, and then answer the question below.

Which action will FortiGate take ifa user attempts to access www.dropbox.com, which is categorized as File Sharing and Storage?

• A. FortiGate will exempt the connection based on the Web Content Filter configuration.
• B. FortiGate will block the connection based on the URL Filterconfiguration.
• C. FortiGate will allow the connection based on the FortiGuard category based filter configuration.
• D. FortiGate will block the connection as an invalid URL.

Answer: B

Explanation:
fortigate does it in order Static URL -> FortiGuard – > Content -> Advanced (java, cookie removal..)so block it in first step

NEW QUESTION 14
The logs in a FSSO collector agent (CA) are showing the following error: failed to connect to registry: PIKA1026 (192.168.12.232)
What can be the reason for this error?

• A. The CA cannot resolve the name of the workstation.
• B. The FortiGate cannot resolve the name of the workstation.
• C. The remote registry service is not running in the workstation 192.168.12.232.
• D. The CA cannot reach the FortiGate with the IP address 192.168.12.232.

Answer: C

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=FD30548

NEW QUESTION 15
What is the purpose of an internal segmentation firewall (ISFW)?

• A. It inspects incoming traffic to protect services in the corporate DMZ.
• B. It is the first line of defense at the network perimeter.
• C. It splits the network into multiple security segments to minimize the impact of breaches.
• D. It is an all-in-one security appliance that is placed at remotesites to extend the enterprise network.

Answer: C

Explanation:
ISFW splits your network into multiple security segments. They serve as a breach containers from attacks that come from inside.

NEW QUESTION 16

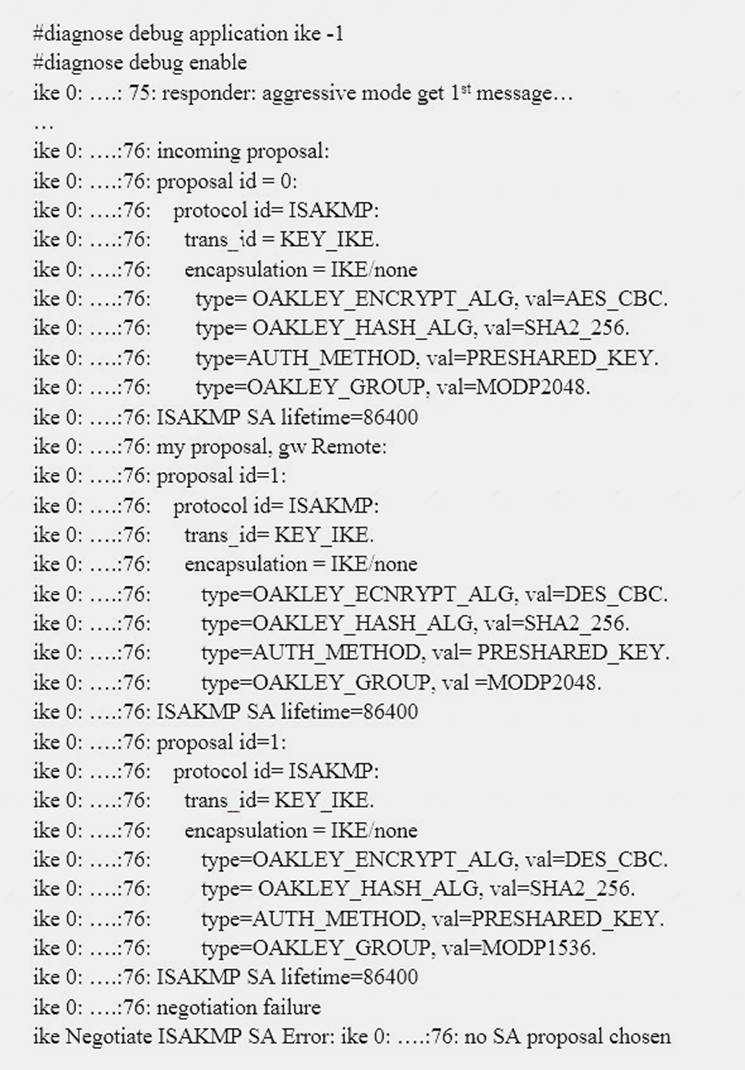

Examine the partial output from the IKE real time debug shown in the exhibit; then answer the question below.

Why didn’t the tunnel come up?

• A. IKEmode configuration is not enabled in the remote IPsec gateway.
• B. The remote gateway’s Phase-2 configuration does not match the local gateway’s phase-2 configuration.
• C. The remote gateway’s Phase-1 configuration does not match the local gateway’s phase-1configuration.
• D. One IPsec gateway is using main mode, while the other IPsec gateway is using aggressive mode.

Answer: C

NEW QUESTION 17

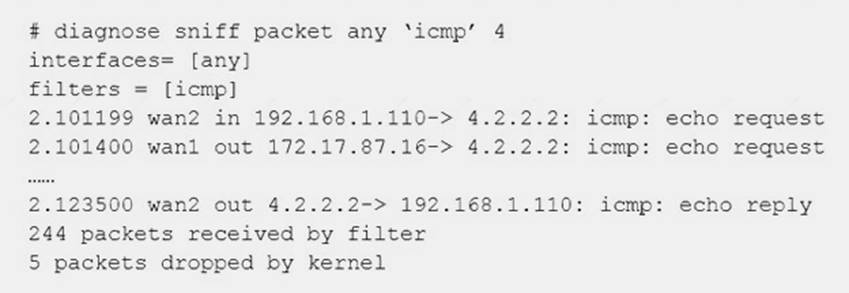

Examine the following partial output from a sniffer command; then answer the question below.

What is the meaning of the packetsdropped counter at the end of the sniffer?

• A. Number of packets that didn’t match the sniffer filter.
• B. Number of total packets dropped by the FortiGate.
• C. Number of packets that matched the sniffer filter and were dropped by the FortiGate.
• D. Number ofpackets that matched the sniffer filter but could not be captured by the sniffer.

Answer: D

Explanation:
https://kb.fortinet.com/kb/documentLink.do?externalID=11655

NEW QUESTION 18
View the exhibit, which contains thepartial output of an IKE real-time debug, and then answer the question below.
ike 0: comes 10.0.0.2:500->10.0.0.1:500, ifindex=7....
ike 0: IKEv1 exchange=Aggressive id=baf47d0988e9237f/2f405ef3952f6fda len=430 ike 0: in
BAF47D0988E9237F2F405EF3952F6FDA0110040000000000000001AE0400003C0000000100000001000000
ike 0:RemoteSite:4: initiator: aggressive mode get 1st response...
ike 0:RemoteSite:4: VID RFC 3947 4A131c81070358455C5728F20E95452F ike 0:RemoteSite:4: VID DPD AFCAD71368A1F1C96B8696FC77570100
ike 0:RemoteSite:4: VID FORTIGATE 8299031757A36082C6A621DE000502D7
ike 0:RemoteSite:4: peer is FortiGate/Fortios (v5 b727)
ike 0:RemoteSite:4: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3
ike 0:RemoteSite:4: VID FRAGMENTATION 4048B7D56EBCE88525E7DE7F00D6C2D3C0000000
ike 0:RemoteSite:4: received peer identifier FQDN ‘remore’ ike 0:RemoteSite:4: negotiation result
ike 0:RemoteSite:4: proposal id = 1:
ike 0:RemoteSite:4: protocol id = ISAKMP: ike 0:RemoteSite:4: trans_id = KEY_IKE.
ike 0:RemoteSite:4: encapsulation = IKE/none
ike 0:RemoteSite:4: type=OAKLEY_ENCRYPT_ALG, val=AES_CBC, key –len=128 ike 0:RemoteSite:4: type=OAKLEY_HASH_ALG, val=SHA.
ike 0:RemoteSite:4: type-AUTH_METHOD, val=PRESHARED_KEY. ike 0:RemoteSite:4: type=OAKLEY_GROUP, val=MODP1024.
ike 0:RemoteSite:4: ISAKMP SA lifetime=86400
ike 0:RemoteSite:4: ISAKMP SA baf47d0988e9237f/2f405ef3952f6fda key 16:
B25B6C9384D8BDB24E3DA3DC90CF5E73
ike 0:RemoteSite:4: PSK authentication succeeded ike 0:RemoteSite:4: authentication OK ike0:RemoteSite:4: add INITIAL-CONTACT
ike 0:RemoteSite:4: enc BAF47D0988E9237F405EF3952F6FDA081004010000000000000080140000181F2E48BFD8E9D603F
ike 0:RemoteSite:4: out BAF47D0988E9237F405EF3952F6FDA08100401000000000000008C2E3FC9BA061816A396F009A12
ike 0:RemoteSite:4: sent IKE msg (agg_i2send): 10.0.0.1:500-10.0.0.2:500, len=140, id=baf47d0988e9237f/2 ike 0:RemoteSite:4: established IKE SA baf47d0988e9237f/2f405ef3952f6fda
Which statements about this debug output are correct? (Choose two.)

• A. The remote gateway IP address is 10.0.0.1.
• B. It shows a phase 1 negotiation.
• C. The negotiation is using AES128 encryption with CBC hash.
• D. The initiator has provided remote as its IPsec peer ID.

Answer: BD

NEW QUESTION 19
Examine the output fromthe BGP real time debug shown in the exhibit, then the answer the question below:

Which statements are true regarding the output in the exhibit? (Choose two.)

• A. BGP peers have successfully interchangedOpenandKeepalivemessages.
• B. Local BGP peer received a prefix for a default route.
• C. The state of the remote BGP peer isOpenConfirm.
• D. The state of the remote BGP peer will go toConnectafter it confirms the received prefixes.

Answer: AB

NEW QUESTION 20
Which statement is true regarding File description (FD) conserve mode?

• A. IPS inspection is affected when FortiGate enters FDconserve mode.
• B. A FortiGate enters FD conserve mode when the amount of available description is less than 5%.
• C. FD conserve mode affects all daemons running on the device.
• D. Restarting the WAD process is required to leave FD conserve mode.

Answer: B

NEW QUESTION 21
Examine the output from the 'diagnose debug authd fsso list' command; then answer the question below.
# diagnose debug authd fsso list—FSSO logons-IP: 192.168.3.1 User: STUDENT Groups: TRAININGAD/USERS Workstation: INTERNAL2. TRAINING. LAB The IP address 192.168.3.1 is
NOT the one used by the workstation INTERNAL2. TRAINING. LAB.
What should the administrator check?

• A. The IP address recorded in the logon event for the user STUDENT.
• B. The DNS name resolution for the workstation name INTERNAL2. TRAININ
• C. LAB.
• D. The source IP address of the traffic arriving to the FortiGate from the workstation INTERNAL2.TRAININ
• E. LAB.
• F. The reserve DNS lookup forthe IP address 192.168.3.1.

Answer: C

NEW QUESTION 22
......
