Free demo questions for Cisco 300-175 Exam Dumps Below:

NEW QUESTION 1
Which set of statements about the deployment options for Cisco UCS Central Software is true?

  • A. Cisco UCS Central Software can be installed in a physical or a hypervisor environmen
  • B. Only VMware and KVM hypervisor environments are supported.
  • C. Cisco UCS Central Software can he installed in a physical or a hypervisor environmen
  • D. VMware, Microsoft Hyper-V, and KVM hypervisor environments are supported.
  • E. Cisco UCS Central Software can be installed only in a physical environment, due to extreme I/O and networking needs.
  • F. Cisco UCS Central Software can be installed only in a VMware and Microsoft Hyper-V virtual environment.

Answer: A

Explanation: UCS Central can only be installed in a hypervisor, but may be installed in VMW are ESXi, Hyper-V, and KVM.
This isn't an option Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-central/install-upgrade/1-3/b_Cisco_UCSC_I

NEW QUESTION 2
Which statement about an iSCSIvNIC when it is created with an overlay NIC is true?

  • A. It can have any VLAN allowed on it.
  • B. It can be assigned a unique MAC address.
  • C. It can have a unique pin group assigned to it.
  • D. It can have only the overlays native VLAN associated to it.

Answer: D

NEW QUESTION 3
Which of the Mowing do you use to update the board controller firmware?

  • A. local disk
  • B. infrastructure firmware
  • C. server pool
  • D. host firmware package

Answer: D

NEW QUESTION 4
You need to provision iSCSI initiator IP pools on a Cisco UCS system. How many iSCSIvNICs can you use per boot policy?

  • A. 2
  • B. 4
  • C. 6
  • D. 8

Answer: A

Explanation: You can add up to two iSCSIvNICs per boot policy. One vNIC acts as the primary iSCSI boot source, and the other acts as the secondary iSCSI boot source.
Reference:
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-2/b_UCSM_GUI_Configu

NEW QUESTION 5
Which two statements about the maintenance policy configurations available from the Cisco UCS Manager GUI are true? (Choose two.)

  • A. A maintenance policy can be defined for the service profile associated to a server and for updating a service profile bound to one or more service profiles.
  • B. A maintenance policy is used to configure a nondisruptive upgrade of the Cisco UCS Fabric Interconnects.
  • C. A maintenance policy can defer the direct deployment of firmware images for components that use neither the host firmware nor the management firmware packages available in the Cisco UCS Manager, such as fabric interconnects and IOMs.
  • D. A maintenance policy can deploy service profile changes immediately, when acknowledged by an admin user or automatically at the time specified in the schedule.
  • E. A maintenance policy can be used only to apply nondisruptive service profile changes to servers.

Answer: BD

Explanation: Reference:
http://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/20/b_UCSM_GUI_Configura

NEW QUESTION 6
Open the windows by clicking on the minimized at the bottom of the viewing area. Windows can be minimized by clicking on the [X], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Clicking the icon will open a device terminal so you can interact with the hardware.
Open the Questions window and begin by clicking a question number. When you have completed answering all questions, click Done to continue.
Scenario
Use your UCS knowledge on Adapter errors ………………………………………configurations.

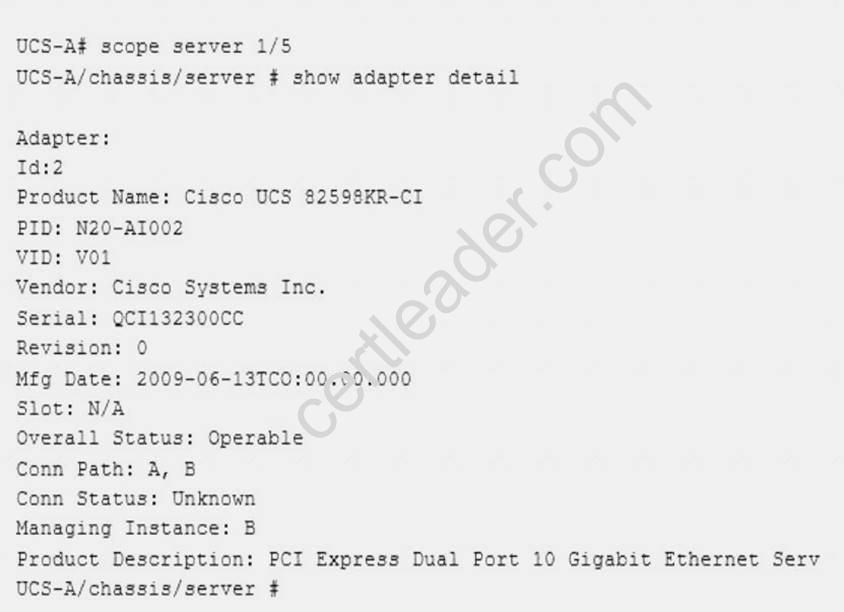

300-175 dumps exhibit
We are working on which server?

  • A. 1
  • B. 2
  • C. 3
  • D. 4
  • E. 5

Answer: E

NEW QUESTION 7
Which two of the following are prerequisites when configuring a server to use SAN boot? (Choose two.)

  • A. A virtual media device must be accessible from the server
  • B. The global boot policy must be attached to a service profile template.
  • C. The local disk must be the primary disk in the boot order.
  • D. A boot LUN must contain an installation of an operating system
  • E. The Cisco UCS domain and the SAN storage device must be able to communicate

Answer: DE

NEW QUESTION 8
Which two Cisco UCS components require drivers? (Choose two.)

  • A. FNIC
  • B. BIOS
  • C. CIMC
  • D. board controller
  • E. ENIC

Answer: AE

NEW QUESTION 9
Which two parameters are used by Cisco UCS for automatic Fibre Channel uplink pinning?

  • A. server WWN
  • B. MDS WWNN
  • C. VSAN membership
  • D. hash algorithm
  • E. vHBA MAC address

Answer: AC

Explanation: https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/3-0/b_UCSM_GUI_User_G https://
www.cisco.com/c/en/us/td/docs/unified_computing/ucs/sw/gui/config/guide/2-0/b_UCSM_GUI_Configuration_

NEW QUESTION 10
You must implement a Dynamic FCoE topology that uses ECMP. Which ancillary technology do you use?

  • A. OTV
  • B. VXLAN
  • C. FabricPath
  • D. EIGRP

Answer: C

NEW QUESTION 11
In order to manually boot from the FlexFlash SD card, which boot option must be in the boot policy used in the service profile?

  • A. FlexFlash state
  • B. remote virtual drive
  • C. remote boot
  • D. SD card

Answer: D

Explanation: Topic 2, Exam Set 1

NEW QUESTION 12
Open the windows by clicking on the minimized at the bottom of the viewing area. Windows can be minimized by clicking on the [X], repositioned by dragging the title bar, and resized by using the handle at the lower right corner to customize the viewing area.
If you are required to access the devices to complete this scenario, the mouse cursor will use a hand symbol when moved over device icons. Clicking the icon will open a device terminal so you can interact with the hardware.
Open the Questions window and begin by clicking a question number. When you have completed answering all questions, click Done to continue.
Scenario
Use your UCS knowledge on Adapter errors ………………………………………configurations.

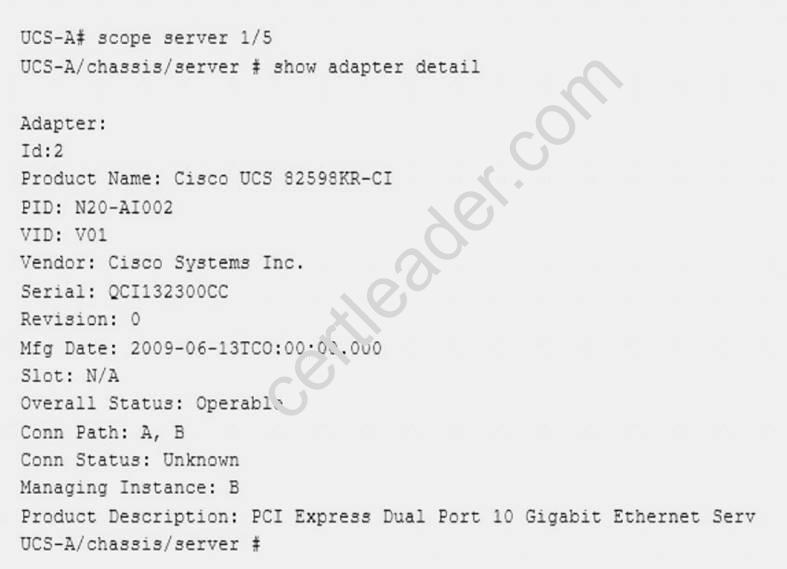

300-175 dumps exhibit
Current Adapter Connected Status is?

  • A. Operable
  • B. Down
  • C. Inoperable
  • D. Unknown

Answer: D

NEW QUESTION 13
Which technology makes VM-FEX possible?

  • A. VXLAN
  • B. VNTAG
  • C. VPC
  • D. DVS

Answer: B

NEW QUESTION 14
Which Cisco UCS blade server supports the highest I/O throughput?

  • A. Cisco UCS B420 M3 Blade Server
  • B. Cisco UCS B200 M3 Blade Server
  • C. Cisco UCS B22 M3 Blade Server
  • D. Cisco UCS B200 M4 Blade Server

Answer: A

Explanation: B420 M4 = 160G I/O BW
https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-b-series-blade-servers/data_sh https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-b-series-blade-servers/data_sh https://apps.cisco.com/ccw/cpc/guest/content/ucsModelDetails/model_b200m4 https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-b200-m4-blade-server/datashe

NEW QUESTION 15
When deploying a dynamic FCoE topology using ECMP, what ancillary technology is used?

  • A. Fabricpath
  • B. EIGRP
  • C. VXLAN

Answer: A

Explanation: Reference:
https://blogs.cisco.com/datacenter/what-is-dynamic-fcoe

NEW QUESTION 16
Which two statements describe effects of enabling a Cisco UCS Fabric Interconnect in Ethernet end-host mode? (Choose two.)

  • A. MAC address learning is disabled on the uplink ports of the fabric interconnect.
  • B. MAC address learning is enabled on the server ports of the fabric interconnect.
  • C. Server-to-server communication on the same VLAN is not performed locally via fabric interconnect, but requires an external switch.
  • D. By default, unicast traffic received by the fabric uplink port to unknown destination MAC addresses is forwarded to all of the server ports.
  • E. MAC address learning is disabled on all of the ports in Ethernet end-host mode.

Answer: AB

Explanation: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/unified-computing/whitepaper_c11 MAC address learning occurs only on the server ports; MAC address movement is fully supported.
Server-to-server Layer 2 traffic is locally switched. In end-host mode, unknown unicast broadcasts are not flooded, switch mode is required. Additionally, because there is no MAC address learning on the uplink ports, the MAC address table can scale to support as many virtual machines as the number of entries available in the MAC address forwarding table.

NEW QUESTION 17
You need to identify which DCB standard provides those functionalities negotiation capabilities for features, the distribution of parameters from one node to another, and logical link up and down signaling for both Ethernet and fibre Channel interfaces. Which DCB standard should you identity?

  • A. ETS
  • B. PFC
  • C. DCBX
  • D. QCN

Answer: C

Explanation: Reference:
https://www.cisco.com/c/dam/en/us/solutions/collateral/data-center-virtualization/ieee-802-1-data-centerbridgin https://www.cisco.com/c/dam/en/us/products/collateral/storage-networking/mds-9700-series-multilayerdirectors

NEW QUESTION 18
Refer to the exhibit.
300-175 dumps exhibit
Which two media types can you mount from the KVM console? (Choose two.)

  • A. ISO
  • B. VHD
  • C. VHDx
  • D. IMG
  • E. VMDK

Answer: AD
