Microsoft AZ-102 Exam Questions 2021

NEW QUESTION 1
HOT SPOT
Your company has offices in New York and Los Angeles.
You have an Azure subscription that contains an Azure virtual network named VNet1. Each office has a site-to-site VPN connection to VNet1.
Each network uses the address spaces shown in the following table.

You need to ensure that all Internet-bound traffic from VNet1 is routed through the New York office. What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

Answer:

Explanation: Incorrect Answers:
Not: New-AzureRmVirtualNetworkGatewayConnection
This command creates the Site-to-Site VPN connection between the virtual network gateway and the on-prem VPN device. We already have Site-to-Site VPN connections.
Box 2: 192.168.0.0/20
Specify the VNET1 address. References:
https://docs.microsoft.com/en-us/powershell/module/azurerm.network/setazurermvirtualnetworkgatewaydefaultsite

NEW QUESTION 2
You sign up for Azure Active Directory (Azure AD) Premium.
You need to add a user named admin1@contoso.com as an administrator on all the computers that will be joined to the Azure AD domain.
What should you configure in Azure AD?

• A. Device settings from the Devices blade.
• B. General settings from the Groups blade.
• C. User settings from the Users blade.
• D. Providers from the MFA Server blade.

Answer: C

Explanation: When you connect a Windows device with Azure AD using an Azure AD join, Azure AD adds the following security principles to the local administrators group on the device:
The Azure AD global administrator role The Azure AD device administrator role
The user performing the Azure AD join In the Azure portal, you can manage the device administrator role on the Devices page. To open the Devices
page: 1. Sign in to your Azure portal as a global administrator or device administrator.
2. On the left navbar, click Azure Active Directory.
3. In the Manage section, click Devices.
4. On the Devices page, click Device settings.
5. To modify the device administrator role, configure Additional local administrators on Azure AD joined
devices.
References: https://docs.microsoft.com/en-us/azure/active-directory/devices/assign-local-admin

NEW QUESTION 3
DRAG DROP
You have an Azure subscription. The subscription includes a virtual network named VNet1. Currently, VNet1 does not contain any subnets.
You plan to create subnets on VNet1 and to use application security groups to restrict the traffic between the subnets. You need to create the application security groups and to assign them to the
subnets.
Which four cmdlets should you run in sequence? To answer, move the appropriate cmdlets from the list of cmdlets to the answer area and arrange them in the correct order.

Answer:

Explanation: Step 1: New-AzureRmNetworkSecurityRuleConfig
Step 2: New-AzureRmNetworkSecurityGroup
Step 3: New-AzureRmVirtualNetworkSubnetConfig
Step 4: New-AzureRmVirtualNetwork
Example: Create a virtual network with a subnet referencing a network security group New-AzureRmResourceGroup -Name TestResourceGroup -Location centralus
$rdpRule = New-AzureRmNetworkSecurityRuleConfig -Name rdp-rule -Description "Allow RDP" - Access Allow -Protocol Tcp -Direction Inbound -Priority 100 -SourceAddressPrefix Internet - SourcePortRange * -DestinationAddressPrefix * -DestinationPortRange 3389
$networkSecurityGroup = New-AzureRmNetworkSecurityGroup -ResourceGroupName TestResourceGroup -Location centralus -Name "NSG-FrontEnd" -SecurityRules $rdpRule
$frontendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name frontendSubnet - AddressPrefix "10.0.1.0/24" -NetworkSecurityGroup $networkSecurityGroup
$backendSubnet = New-AzureRmVirtualNetworkSubnetConfig -Name backendSubnet - AddressPrefix "10.0.2.0/24" -NetworkSecurityGroup $networkSecurityGroup
New-AzureRmVirtualNetwork -Name MyVirtualNetwork -ResourceGroupName TestResourceGroup - Location centralus -AddressPrefix "10.0.0.0/16" -Subnet $frontendSubnet,$backendSubnet References: https://docs.microsoft.com/en-us/powershell/module/azurerm.network/newQuestions
& Answers PDF P-44 azurermvirtualnetwork?view=azurermps-6.7.0

NEW QUESTION 4
Note: This question is part of a series of Questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more
than one correct solution, while others might not have a correct solution. After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure virtual machine named VM1. VM1 was deployed by using a custom Azure Resource Manager template named ARM1.json.
You receive a notification that VM1 will be affected by maintenance. You need to move VM1 to a different host immediately.
Solution: From the Overview blade, you move the virtual machine to a different resource group. Does this meet the goal?

• A. Yes
• B. No

Answer: B

NEW QUESTION 5
HOT SPOT

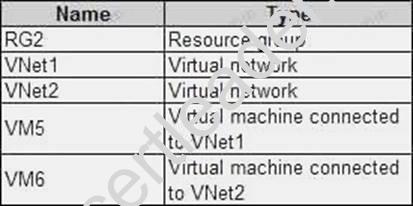

You have an Azure subscription named Subscription1. Subscription1 contains the resources in the following table.

In Azure, you create a private DNS zone named adatum.com. You set the registration virtual network to VNet2. The adatum.com zone is configured as shown in the following exhibit.

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: No
Azure DNS provides automatic registration of virtual machines from a single virtual network that's linked to a private zone as a registration virtual network. VM5 does not belong to the registration virtual network though.
Box 2: No
Forward DNS resolution is supported across virtual networks that are linked to the private zone as resolution virtual networks. VM5 does belong to a resolution virtual network.
Box 3: Yes
VM6 belongs to registration virtual network, and an A (Host) record exists for VM9 in the DNS zone. By default, registration virtual networks also act as resolution virtual networks, in the sense that DNS resolution against the zone works from any of the virtual machines within the registration virtual network.
References: https://docs.microsoft.com/en-us/azure/dns/private-dns-overview

NEW QUESTION 6
You are troubleshooting a performance issue for an Azure Application Gateway. You need to compare the total requests to the failed requests during the past six hours. What should you use?

• A. Metrics in Application Gateway
• B. Diagnostics logs in Application Gateway
• C. NSG flow logs in Azure Network Watcher
• D. Connection monitor in Azure Network Watcher

Answer: A

Explanation: Application Gateway currently has seven metrics to view performance counters.
Metrics are a feature for certain Azure resources where you can view performance counters in the portal. For Application Gateway, the following metrics are available: Total Requests
Failed Requests Current Connections Healthy Host Count Response Status Throughput Unhealthy Host count
You can filter on a per backend pool basis to show healthy/unhealthy hosts in a specific backend pool References: https://docs.microsoft.com/en-us/azure/application-gateway/applicationgatewaydiagnostics# Metrics

NEW QUESTION 7
HOT SPOT

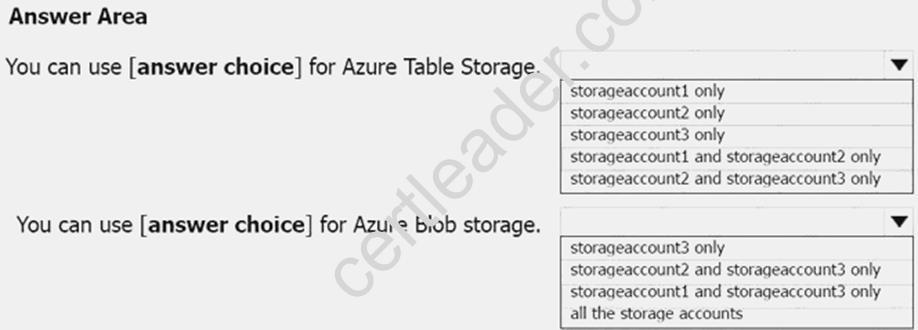

You have an Azure Storage accounts as shown in the following exhibit.

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: storageaccount1 and storageaccount2 only Box 2: All the storage accounts
Note: The three different storage account options are: General-purpose v2 (GPv2) accounts, Generalpurpose v1 (GPv1) accounts, and Blob storage accounts.
General-purpose v2 (GPv2) accounts are storage accounts that support all of the latest features for blobs, files, queues, and tables.
Blob storage accounts support all the same block blob features as GPv2, but are limited to supporting only block blobs.
General-purpose v1 (GPv1) accounts provide access to all Azure Storage services, but may not have the latest features or the lowest per gigabyte pricing.
References: https://docs.microsoft.com/en-us/azure/storage/common/storage-account-options

NEW QUESTION 8
DRAG DROP
You have an Azure subscription that contains the following resources:
• a virtual network named VNet1
• a replication policy named ReplPolicy1
• a Recovery Services vault named Vault1
• an Azure Storage account named Storage1
You have an Amazon Web Services (AWS) EC2 virtual machine named VM1 that runs Windows Server You need to migrate VM1 to VNet1 by using Azure Site Recovery.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Answer:

Explanation: Step 1: Deploy an EC2 virtual machine as a configuration server Prepare source include:
Use an EC2 instance that's running Windows Server 2012 R2 to create a configuration server and register it with your recovery vault.
Configure the proxy on the EC2 instance VM you're using as the configuration server so that it can access the service URLs.
Step 2: Install Azure Site Recovery Unified Setup.
Download Microsoft Azure Site Recovery Unified Setup. You can download it to your local machine and then copy it to the VM you're using as the configuration server.
Step 3: Enable replication for VM1.
Enable replication for each VM that you want to migrate. When replication is enabled, Site Recovery automatically installs the Mobility service.
References:
https://docs.microsoft.com/en-us/azure/site-recovery/migrate-tutorial-aws-azure

NEW QUESTION 9
You need to prepare the environment to meet the authentication requirements.
Which two actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

• A. Allow inbound TCP port 8080 to the domain controllers in the Miami office.
• B. Add http://autogon.microsoftazuread-sso.com to the intranet zone of each client computer in the Miamioffice.
• C. Join the client computers in the Miami office to Azure AD.
• D. Install the Active Directory Federation Services (AD FS) role on a domain controller in the Miami office.
• E. Install Azure AD Connect on a server in the Miami office and enable Pass-through Authenticatio

Answer: BE

Explanation: B: You can gradually roll out Seamless SSO to your users. You start by adding the following Azure AD URL to all or selected users' Intranet zone settings by using Group Policy in Active Directory: https://autologon.microsoftazuread-sso.com
E: Seamless SSO works with any method of cloud authentication - Password Hash Synchronization or Pass-through Authentication, and can be enabled via Azure AD Connect.
References:
https://docs.microsoft.com/en-us/azure/active-directory/hybrid/how-to-connect-sso-quick-start

Case Study: 2
Contoso Ltd Overview
Contoso, Ltd. is a manufacturing company that has offices worldwide. Contoso works with partner organizations to bring products to market.
Contoso products are manufactured by using blueprint files that the company authors and maintains. Existing Environment
Currently, Contoso uses multiple types of servers for business operations, including the following:
? File servers
? Domain controllers
? Microsoft SQL Server servers
Your network contains an Active Directory forest named contoso.com. All servers and client computers are joined to Active Directory.
You have a public-facing application named App1. App1 is comprised of the following three tiers:
? A SQL database
? A web front end
? A processing middle tier
Each tier is comprised of five virtual machines. Users access the web front end by using HTTPS only. Requirements
Planned Changes
Contoso plans to implement the following changes to the infrastructure: Move all the tiers of App1 to Azure.
Move the existing product blueprint files to Azure Blob storage.
Create a hybrid directory to support an upcoming Microsoft Office 365 migration project. Technical Requirements
Contoso must meet the following technical requirements: Move all the virtual machines for App1 to Azure. Minimize the number of open ports between the App1 tiers.
Ensure that all the virtual machines for App1 are protected by backups. Copy the blueprint files to Azure over the Internet.
Ensure that the blueprint files are stored in the archive storage tier. Ensure that partner access to the blueprint files is secured and temporary.
Prevent user passwords or hashes of passwords from being stored in Azure. Use unmanaged standard storage for the hard disks of the virtual machines.
Ensure that when users join devices to Azure Active Directory (Azure AD), the users use a mobile phone to verify their identity.
Minimize administrative effort whenever possible. User Requirements
Contoso identifies the following requirements for users:
Ensure that only users who are part of a group named Pilot can join devices to Azure AD. Designate a new user named Admin1 as the service administrator of the Azure subscription. Ensure that a new user named User3 can create network objects for the Azure subscription.

NEW QUESTION 10
You have an Azure subscription named Subscnption1 that contains an Azure virtual machine named VM1. VM1 is in a resource group named RG1.
VM1 runs services that will be used to deploy resources to RG1.
You need to ensure that a service running on VM1 can manage the resources in RG1 by using the identity of VM1. What should you do fit -

• A. From the Azure portal modify the Access control (1AM) settings of VM1.
• B. From the Azure portal, modify the Policies settings of RG1.
• C. From the Azure portal, modify the value of the Managed Service Identity option for VM1.
• D. From the Azure portal, modify the Access control (IAM) settings of RG1.

Answer: C

Explanation: A managed identity from Azure Active Directory allows your app to easily access other AADprotected
resources such as Azure Key Vault. The identity is managed by the Azure platform and does not require you to provision or rotate any secrets.
User assigned managed identities can be used on Virtual Machines and Virtual Machine Scale Sets. References:
https://docs.microsoft.com/en-us/azure/app-service/app-service-managed-service-identity

NEW QUESTION 11
You create an Azure Storage account named contosostorage. You plan to create a file share named data.
Users need to map a drive to the data file share from home computers that run Windows 10. Which port should be open between the home computers and the data file share?

• A. 80
• B. 443
• C. 445
• D. 3389

Answer: C

Explanation: Ensure port 445 is open: The SMB protocol requires TCP port 445 to be open; connections will fail if port 445 is blocked.
References: https://docs.microsoft.com/en-us/azure/storage/files/storage-how-to-use-files-windows

NEW QUESTION 12
Note: This question is part of a series of questions that present the same scenario goals. Some question sets might have more than one correct solution, while others
ion in the series contains a unique solution that might meet the stated not have a correct solution. After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure web app named Appl. App1 runs in an Azure App Service plan named Plan1. Plan1 is associated to the Free pricing tier.
You discover that App1 stops each day after running continuously for 60 minutes. You need to ensure that App1 can run continuously for the entire day.
Solution: You add a triggered WebJob to App1. Does this meet the goal?

• A. Yes
• B. No

Answer: B

Explanation: You need to change to Basic pricing Tier.
Note: The Free Tier provides 60 CPU minutes / day. This explains why App1 is stops. The Basic tier has no such cap.
References:
https://azure.microsoft.com/en-us/pricing/details/app-service/windows/

NEW QUESTION 13
HOT SPOT

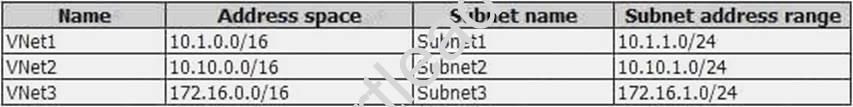

You have an Azure subscription named Subscription1. Subscription1 contains the virtual networks in the following table.

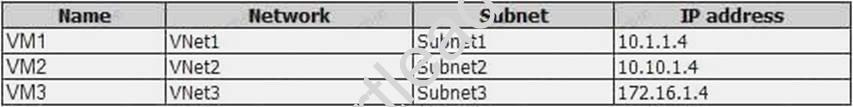

Subscription1 contains the virtual machines in the following table:

The firewalls on all the virtual machines are configured to allow all ICMP traffic. You add the peerings in the following table.

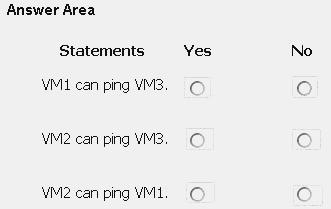

For each of the following statements, select Yest if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

Answer:

Explanation: Box 1: Yes
Vnet1 and Vnet3 are peers. Box 2: Yes
Vnet2 and Vnet3 are peers. Box 3: No
Peering connections are non-transitive.
References: https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/hybridnetworking/ hub-spoke

NEW QUESTION 14
You have an Azure subscription that contains a policy-based virtual network gateway named GW1 and a virtual network named VNet1. You need to ensure that you can configure a point-to-site connection from VNet1 to an on-premises computer. Which two actions should you perform? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Reset GW1.
• B. Add a service endpoint to VNet1.
• C. Add a connection to GW1.
• D. Add a public IP address space to VNet1.
• E. Delete GWL
• F. Create a route-based virtual network gatewa

Answer: EF

Explanation: E: Policy-based VPN devices use the combinations of prefixes from both networks to define how traffic is encrypted/decrypted through IPsec tunnels. It is typically built on firewall devices that perform packet filtering. IPsec tunnel encryption and decryption are added to the packet filtering and processing engine.
F: A VPN gateway is used when creating a VPN connection to your on-premises network.
Route-based VPN devices use any-to-any (wildcard) traffic selectors, and let routing/forwarding tables direct traffic to different IPsec tunnels. It is typically built on router platforms where each IPsec tunnel is modeled as a network interface or VTI (virtual tunnel interface).
Incorrect Answers:
D: Point-to-Site connections do not require a VPN device or a public-facing IP address. References:
https://docs.microsoft.com/en-us/azure/vpn-gateway/create-routebased-vpn-gateway-portal https://docs.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-connect-multiple-policybasedrm- ps

Case Study: 10
Lab 2 Overview
This is a lab or performance-based testing (PBT) section.
The following section of the exam is a lab. In this section, you will perform a set of tasks m a live environment. While most liable to you as it would be m a live environment, some functionality (e g, copy and paste, ability to having sites) will not be possible by design.
Scoring is based on the outcome of performing the tasks stated in the lab. In other words, it doesn't matter how you accomplish the lab9s0 and all other sections of the exam in the time provided.
Please note that once you submit your work by clicking the Next button within a lab. you will NOT be able to return to the tab.



To connect to Azure portal, type https://portal.azure.com in te browser address bar.

NEW QUESTION 15
Note: This question is part of a series questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You manage a virtual network named Vnet1 that is hosted in the West US Azure region. VNet hosts two virtual machines named VM1 and VM2 run Windows Server.
You need to inspect all the network traffic from VM1 to VM2 for a period of three hours. Solution: From Azure Network Watcher, you create a connection monitor.
Does this meet the goal?

• A. YES
• B. NO

Answer: A

Explanation: Azure Network Watcher provides tools to monitor, diagnose, view metrics, and enable or disable logs for resources in an Azure virtual network.
Capture packets to and from a VM
Advanced filtering options and fine-tuned controls, such as the ability to set time and size limitations, provide versatility. The capture can be stored in Azure Storage, on the VM's disk, or both. You can then analyze the capture file using several standard network capture analysis tools.
Network Watcher variable packet capture allows you to create packet capture sessions to track traffic to and from a virtual machine. Packet capture helps to diagnose network anomalies both reactively and proactivity.
References:
https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-monitoring-overview

NEW QUESTION 16
You have two Azure virtual networks named VNet1 and VNet2. VNet1 contains an Azure virtual
machine named VM1. VNet2 contains an Azure virtual machine named VM2. VM1 hosts a frontend application that connects to VM2 to retrieve data. Users report that the frontend application is slower than usual.
You need to view the average round-trip time (RTT) of the packets from VM1 to VM2. Which Azure Network Watcher feature should you use?

• A. NSG flow logs
• B. Connection troubleshoot
• C. IP flow verify
• D. Connection monitor

Answer: D

Explanation: The Connection Monitor feature in Azure Network Watcher is now generally available in all public regions. Connection Monitor provides you RTT values on a per-minute granularity. You can monitor a direct TCP connection from a virtual machine to a virtual machine, FQDN, URI, or IPv4 address. References:
https://azure.microsoft.com/en-us/updates/general-availability-azure-network-watcher-connectionmonitor- in-all-public-regions/

NEW QUESTION 17
You have an Azure subscription that contains 10 virtual machines.
You need to ensure that you receive an email message when any virtual machines are powered off, restarted, or deallocated.
What is the minimum number of rules and action groups that you require?

• A. three rules and three action groups
• B. one rule and one action group
• C. three rules and one action group
• D. one rule and three action groups

Answer: C

Explanation: An action group is a collection of notification preferences defined by the user. Azure Monitor and Service
Health alerts are configured to use a specific action group when the alert is triggered. Various alerts may use the same action group or different action groups depending on the user's requirements. References: https://docs.microsoft.com/en-us/azure/monitoring-and-diagnostics/monitoring-actiongroups

NEW QUESTION 18
HOT SPOT

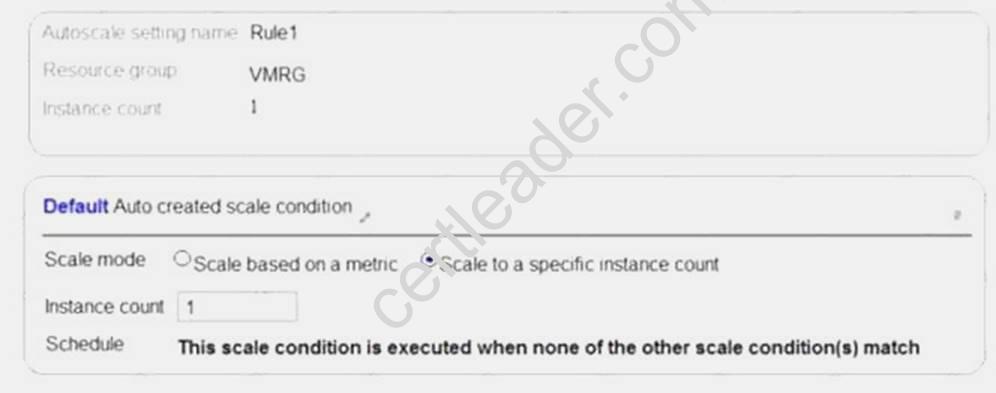

You create an Azure web app named WebApp1. WebApp1 has the autoscale settings shown in the following exhibit.


The scale out and scale in rules are configured to have a duration of 10 minutes and a cool down time of five minutes.

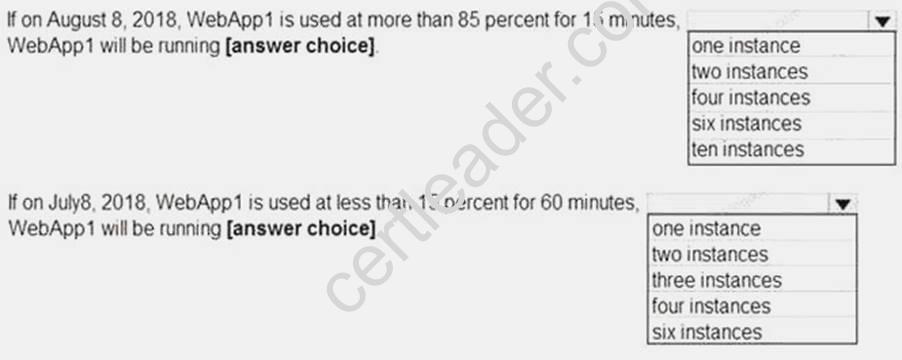

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

Answer:

Explanation:
