Top Tips Of Renewal 300-430 Test Questions

NEW QUESTION 1
When using a Cisco Catalyst 9800 Series Wireless Controller, which statement about AutoQoS is true?

• A. It has a set of predefined profiles that you cannot modify further
• B. It matches traffic and assigns each matched packet to QoS groups
• C. It automates deployment of wired QoS and makes wireless QoS implementation easier
• D. It allows the output policy map to put specific QoS queues into specific subgroups

Answer: B

NEW QUESTION 2
Which three properties are used for client profiling of wireless clients? (Choose three.)

• A. HTTP user agent
• B. DHCP
• C. MAC OUI
• D. hostname
• E. OS version
• F. IP address

Answer: ABC

NEW QUESTION 3
What is an important consideration when implementing a dual SSID design for BYOD?

• A. After using the provisioning SSID, an ACL that used to make the client switch SSIDs forces the user to associate and traverse the network by MAC filtering.
• B. If multiple WLCs are used, the WLAN IDs must be exact for the clients to be provisioned and traverse the network correctly.
• C. SSIDs for this setup must be configured with NAC State-RADIUS NAC for the clients to authenticate with Cisco ISE, or with NAC State-ISE NAC for Cisco ISE to associate the client.
• D. One SSID is for provisioning and the other SSID is for gaining access to the networ
• E. The use of an ACL should not be enforced to make the client connect to the REAL SSID after provisioning.

Answer: D

NEW QUESTION 4
On a branch office deployment, it has been noted that if the FlexConnect AP is in standalone mode and loses connection to the WLC, all clients are disconnected, and the SSID is no longer advertised. Considering that FlexConnect local switching is enabled, which setting is causing this behavior?

• A. ISE NAC is enabled
• B. 802.11r Fast Transition is enabled
• C. Client Exclusion is enabled
• D. FlexConnect Local Auth is disabled

Answer: D

NEW QUESTION 5
Where is Cisco Hyperlocation enabled on a Cisco Catalyst 9800 Series Wireless Controller web interface?

• A. Policy Profile
• B. AP Join Profile
• C. Flex Profile
• D. RF Profile

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/config-guide/b_wl_16_10_cg/cisco-hyperlocation.html

NEW QUESTION 6
An engineer completed the basic installation for two Cisco CMX servers and is in the process of configuring high availability, but it fails. Which two statements about the root of the issue are true? (Choose two.)

• A. The Cisco CMX instances are installed in the same subnet.
• B. The types of the primary and secondary Cisco CMX installations differ.
• C. The delay between the primary and secondary instance is 200 ms.
• D. The sizes of the primary and secondary Cisco CMX installations differ.
• E. Both Cisco CMX installations are virtual.

Answer: BD

NEW QUESTION 7

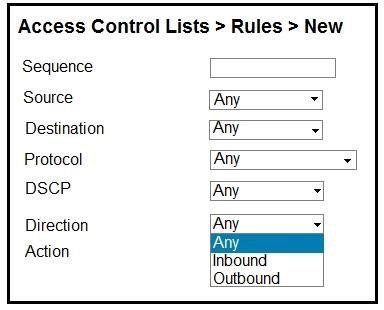

Refer to the exhibit. An engineer is creating an ACL to restrict some traffic to the WLC CPU. Which selection must be made from the direction drop-down list?

• A. It must be Inbound because traffic goes to the WLC.
• B. Packet direction has no significance; it is always Any.
• C. It must be Outbound because it is traffic that is generated from the WLC.
• D. To have the complete list of options, the CPU ACL must be created only by the CLI.

Answer: A

NEW QUESTION 8
Which two protocols are used to communicate between the Cisco MSE and the Cisco Prime Infrastructure network management software? (Choose two.)

• A. HTTPS
• B. Telnet
• C. SOAP
• D. SSH
• E. NMSP

Answer: AE

NEW QUESTION 9
An engineer is implementing a FlexConnect group for access points at a remote location using local switching but central DHCP. Which client feature becomes available only if this configuration is changed?

• A. multicast
• B. static IP
• C. fast roaming
• D. mDNS

Answer: B

NEW QUESTION 10
A Cisco WLC has been added to the network and Cisco ISE as a network device, but authentication is failing. Which configuration within the network device configuration should be verified?

• A. SNMP RO community
• B. device interface credentials
• C. device ID
• D. shared secret

Answer: D

NEW QUESTION 11
A wireless engineer must implement a corporate wireless network for a large company in the most efficient way possible. The wireless network must support 32 VLANs for 300 employees in different departments. Which solution must the engineer choose?

• A. Configure a second WLC to support half of the APs in the deployment.
• B. Configure one single SSID and implement Cisco ISE for VLAN assignment according to different user roles.
• C. Configure different AP groups to support different VLANs, so that all of the WLANs can be broadcast on both radios.
• D. Configure 16 WLANs to be broadcast on the 2.4-GHz band and 16 WLANs to be broadcast on the 5.0-GHz band.

Answer: B

NEW QUESTION 12

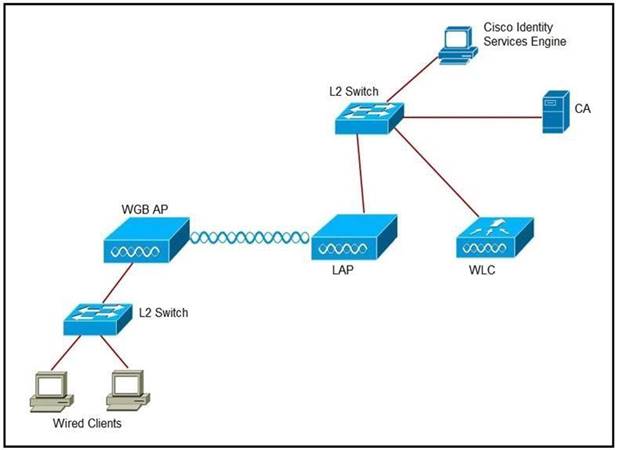

Refer to the exhibit. An engineer must connect a fork lift via a WGB to a wireless network and must authenticate the WGB certificate against the RADIUS server. Which three steps are required for this configuration? (Choose three.)

• A. Configure the certificate, WLAN, and radio interface on WGB.
• B. Configure the certificate on the WLC.
• C. Configure WLAN to authenticate using ISE.
• D. Configure the access point with the root certificate from ISE.
• E. Configure WGB as a network device in ISE.
• F. Configure a policy on ISE to allow devices to connect that validate the certificate.

Answer: ACF

NEW QUESTION 13
CMX Facebook Wi-Fi allows access to the network before authentication. Which two elements are available? (Choose two.)

• A. Allow HTTP traffic only before authentication and block all the traffic.
• B. Allow all the traffic before authentication and intercept HTTPS only.
• C. Allow HTTPs traffic only before authentication and block all other traffic.
• D. Allow all the traffic before authentication and intercept HTTP only.
• E. Allow SNMP traffic only before authentication and block all the traffic.

Answer: CD

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/mse/8-0/CMX_Connect_Engage_Visitor_Connect/Guide/Cisco_CMX_Connect_Engage_Config_Guide_VC/CMX_Facebook_Wi-Fi.html

NEW QUESTION 14
Where is a Cisco OEAP enabled on a Cisco Catalyst 9800 Series Wireless Controller?

• A. RF Profile
• B. Flex Profile
• C. Policy Profile
• D. AP Join ProfileCorrect

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/9800/config-guide/b_wl_16_10_cg/flexconnect.html

NEW QUESTION 15
An engineer is following the proper upgrade path to upgrade a Cisco AireOS WLC from version 7.3 to 8.9. Which two ACLs for Cisco CWA must be configured when upgrading from the specified codes? (Choose two.)

• A. Permit 0.0.0.0 0.0.0.0 UDP any any
• B. Permit 0.0.0.0 0.0.0.0 any DNS any
• C. Permit 0.0.0.0 0.0.0.0 UDP DNS any
• D. Permit 0.0.0.0 0.0.0.0 UDP any DNS
• E. Permit any any any

Answer: AD

NEW QUESTION 16
An engineer wants to configure WebEx to adjust the precedence and override the QoS profile on the WLAN. Which configuration is needed to complete this task?

• A. Change the WLAN reserved bandwidth for WebEx
• B. Create an AVC profile for WebEx
• C. Create an ACL for WebEx
• D. Change the AVC application WebEx-app-sharing to mark

Answer: B

NEW QUESTION 17
Which two statements about the requirements for a Cisco Hyperlocation deployment are true? (Choose two.)

• A. After enabling Cisco Hyperlocation on Cisco CMX, the APs and the wireless LAN controller must be restarted.
• B. NTP can be configured, but that is not recommended.
• C. The Cisco Hyperlocation feature must be enabled on the wireless LAN controller and Cisco CMX.
• D. The Cisco Hyperlocation feature must be enabled only on the wireless LAN controller.
• E. If the Cisco CMX server is a VM, a high-end VM is needed for Cisco Hyperlocation deployments.

Answer: AC

NEW QUESTION 18
For security purposes, an engineer enables CPU ACL and chooses an ACL on the Security > Access Control Lists > CPU Access Control Lists menu. Which kind of traffic does this change apply to, as soon as the change is made?

• A. wireless traffic only
• B. wired traffic only
• C. VPN traffic
• D. wireless and wired traffic

Answer: A

NEW QUESTION 19
What is the maximum time range that can be viewed on the Cisco DNA Center issues and alarms page?

• A. 3 hours
• B. 24 hours
• C. 3 days
• D. 7 days

Answer: B

NEW QUESTION 20
A wireless engineer needs to implement client tracking. Which method does the angle of arrival use to determine the location of a wireless device?

• A. received signal strength
• B. triangulation
• C. time distance of arrival
• D. angle of incidence

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/solutions/Enterprise/Mobility/WiFiLBS-DG/wifich2.html

NEW QUESTION 21
......
