Top Tips Of Up To The Immediate Present 350-601 Test

NEW QUESTION 1
A Cisco UCS C-Series server is installed at a data center. The server should be managed by the Cisco UCS Manager by using a single cable for management and data traffic. Which configuration should be applied after the Physical connection is established?

• A. UCS-A# scope server 1 UCS-A /server# scope cimcUCS-A /server/cimc # scope mgmt-conn sidebandUCS-A /server/cimc # mgmt-conn-state enabled UCS-A /server/cimc/mgmt-conn* # commit-buffer
• B. UCS-A# scope chassis 1 UCS-A /chassis# scope cimcUCS-A /chassis/cimc # scope mgmt-conn sidebandUCS-A /chassis/cimc/mgmt-conn # mgmt-conn-state enabled UCS-A /chassis/cimc/mgmt-conn* # commit-buffer
• C. UCS-A# scope chassis 1 UCS-A /chassis# scope cimcUCS-A /chassis /cimc # set mgmt-conn-state enabled UCS-A /chassis /cimc/mgmt-conn* # commit-buffer
• D. UCS-A# scope server 1 UCS-A /server# scope cimcUCS-A /server/cimc # scope mgmt-conn sidebandUCS-A /server/cimc/mgmt-conn #set mgmt-conn-state enabled UCS-A /server/cimc/mgmt-conn* # commit-buffer

Answer: D

Explanation:
Example
UCS-A# scope server 1 UCS-A /server # scope cimc
UCS-A /server/cimc # scope mgm
UCS-A /server/cimc # scope mgmt-conn
UCS-A /server/cimc # scope mgmt-conn sideband
UCS-A /server/cimc/mgmt-conn # set mgmt-conn-state enabled UCS-A /server/cimc/mgmt-conn* # commit-buffer
UCS-A /server/cimc/mgmt-conn
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/c-series_integration/ucsm3-1/b_C-Series- Integration_UCSM3-1/b_C-Series-Integration_UCSM3-1_chapter_010.html

NEW QUESTION 2
A server engineer wants to control power uses on a Cisco UCS C-series rack server down to the component level. Which two components support specific power limits? (Choose two.)

• A. memory
• B. graphic card
• C. processor
• D. network controller
• E. storage controller

Answer: AC

NEW QUESTION 3

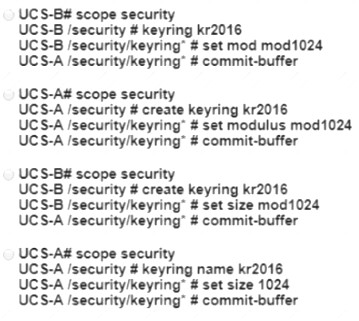

An engineer must configure HTTPS secure management for Cisco UCS Manager using a key ring named kr2016 and a key size of 1024 bits. The environment consists of a primary fabric interconnect named UCS-A and a secondary fabric interconnect named UCS-B. Which command sequence must be used to accomplish this goal?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: B

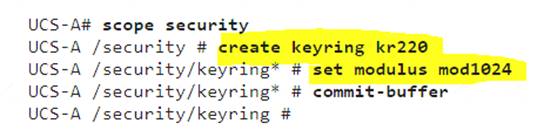

Explanation:
https://www.cisco.com/en/US/docs/unified_computing/ucs/sw/cli/config/guide/1.4.1/CLI_Config_Guide_1_4_1

NEW QUESTION 4
An administrator is implementing DCNM so that events are triggered when monitored traffic exceeds the configured present utili zation threshold. The requirement is to configuration a maximum limit of 39860437 bytes that applies directly to the statistics collected as a ratio of the total link capacity. Which DCNM performance monitoring configuration parameter must be implemented to achieve this result?

• A. Absolution Values
• B. Baseline
• C. Utill%
• D. Per port Monitoring

Answer: A

NEW QUESTION 5
What is an advantage of NFS as compared to Fibre Channel?

• A. NFS enable thin provisioning for LUNs.
• B. NFS provides the dynamic allocation of storage capacity.
• C. NFS removes the impact of IP overhead.
• D. NFS provides direct access to the underlying storage hardware.

Answer: B

Explanation:
https://www.ciscolive.com/c/dam/r/ciscolive/apjc/docs/2018/pdf/BRKINI-1011.pdf

NEW QUESTION 6
What is the impact of an EPLD upgrade on a Cisco MDS 9000 Series Switch?

• A. The active supervisor traffic is disrupted.
• B. The upgrade disrupts the management connectivity to the switch.
• C. The standby supervisor module reloads multiple times.
• D. The upgrade process disrupts only the module that is being upgraded.

Answer: D

NEW QUESTION 7

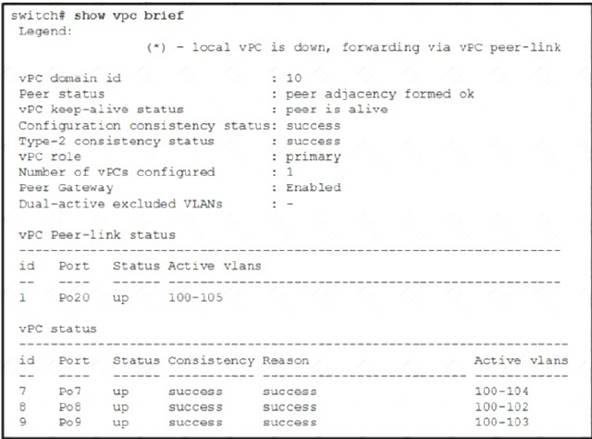

Refer to the exhibit.

Which VLANs are capable to be assigned on vPC interfaces?

• A. 100-103
• B. 100-104
• C. 100-102
• D. 100-105

Answer: D

NEW QUESTION 8

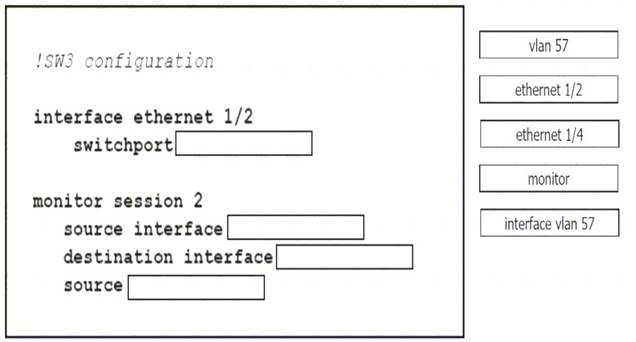

Refer to the exhibit.

An engineer must monitor the Ethernet port and the corresponding VLAN traffic for the hyper4 device The SW3 device is a Cisco Nexus 7000 Series Switch Drag and drop the code snippets from the right into the boxes in the configuration to meet these requirements.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 9
A network engineer must perform a backup and restore of the Cisco Nexus 5000 Series Switch configuration. The backup must be made to an external backup server. The only protocol permitted between the Cisco Nexus Series switch and the backup server is UDP. The backup must be used when the current working configuration of the switch gets corrupted. Which set of steps must be taken to meet these requirements?

• A. 1. Perform a running-config backup to an SFTP serve
• B. 2. Copy backup-config from the SFTP server to the running-config file.
• C. 1. Perform a startup-config backup to a TFTP serve
• D. 2. Copy backup-config from the backup server to the running-config file.
• E. 1. Perform a running-config backup to an SCP serve
• F. 2. Copy running-config in the boot flash to the running-config file.
• G. 1. Perform a startup-config backup to an FTP serve
• H. 2. Copy startup-config in the boot flash to the running-config file.

Answer: B

Explanation:
TFTP runs on UDP 69 = Is correct

NEW QUESTION 10
A customer requires a solution to orchestrate the configuration of storage arrays, firewalls, and Cisco ACI networking. Additionally, the orchestration product must support open automation and a service catalog. Which solution meets these requirements?

• A. Cisco UCS Director
• B. Cisco Intersight
• C. Cisco Data Center Network Manager
• D. Cisco Workload Optimization Manager

Answer: C

NEW QUESTION 11
A POAP-enabled Cisco Nexus switch will not enter POAP mode. Which two conditions should be verified? (Choose two.)

• A. Bootflash must contain a special directory named POAP with poap.py file.
• B. The switch is in bootup process.
• C. No startup configuration is available.
• D. The license file is missing on the switch.
• E. No Cisco NX-OS image is present on the bootflash.

Answer: BC

Explanation:
POAP is an automatic provisioning and zero-touch deployment feature that assists device owners in the initial deployment and configuration of Nexus switches.
The feature works by checking for a local configuration script. If the script has been deleted, the switch has been reset to factory settings, or this is the first boot-up, the POAP daemon will connect to a preset list of servers to download an initial configuration file.
To perform this operation, the switch must first obtain an IP address from a local DHCP server. POAP configuration settings can also be passed through the DHCP response.
Which conditions should be verified, so they need to be TRUE. Like no startup (A) and bootup (B). C means that it needs to miss a license file and E means it needs to miss an NX-OS image.

NEW QUESTION 12
An engineer must implement a VXLAN-based data center interconnect. The long-distance transport provided by a service provider is IP-based,supports a maximum MTU of 1554 bytes, and does not support outbound traffic replication. Which action must be take to build the data center interconnect?

• A. Configure a route map to associate the IPs of the remote VTEPs.
• B. Create an IP access list and associate it with VNI to replicate traffic to remote VTEPs.
• C. Announce host reachability over BGP.
• D. Implement BGP EVPN ingress replication.

Answer: D

NEW QUESTION 13
An engineer is implementing FCoE. Which aspect of DCBXP on a Cisco Nexus switch affects this
implementation?

• A. It uses the Cisco Fabric Services protocol to exchange parameters between two peer links.
• B. It always is enabled on 10/100-Mbps native Ethernet ports.
• C. It provides the authentication of peers on the Cisco Nexus switch.
• D. It requires that LLDP transmit and LLDP receive are enabled on the FCoE interface.

Answer: D

Explanation:
The Data Center Bridging Exchange Protocol (DCBXP) is an extension of LLDP. It is used to announce, exchange, and negotiate node parameters between peers. DCBXP parameters are packaged into a specific DCBXP TLV. This TLV is designed to provide an acknowledgement to the received LLDP packet. DCBXP is enabled by default, provided LLDP is enabled. DCBXP is disabled on ports where LLDP transmit or receive is disabled. https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n2_1/b_Cisco_n5k_layer2

NEW QUESTION 14

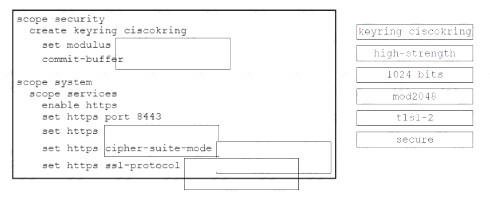

An engineer must configure Cisco UCS Manager to accept only HTTPS connections that use TLS 1 2 The cipher security level must be high and the length of the keyring key value must be 2048 bits Drag and drop the code snippets from the right onto the blanks in the code on the left to accomplish these goals Not all commands are used

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 15

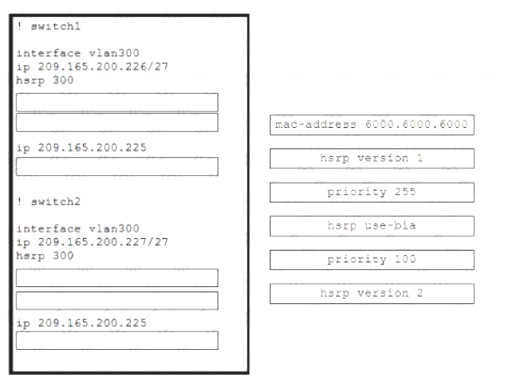

An engineer mus! configure HSRP protocol on two Cisco Nexus 9000 Series Switches running a virtual port channel. In addition, the HSRP implementation must meet these requirements:
It must allow more than 500 groups.
switch 1 must act as the primary switch.
Both switches must use a user-defined hardware address.
Drag and drop the commands from the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used.

• A. Yes
• B. Not Mastered

Answer: A
