NEW QUESTION 1

A company has wireless APS that were deployed with 802.11g. A network engineer has noticed more frequent reports of wireless performance issues during the lunch hour in comparison to the rest of the day. The engineer thinks bandwidth consumption will increase while users are on their breaks, but network utilization logs do not show increased bandwidth numbers. Which Of the following would MOST likely resolve this issue?

• A. Adding more wireless APS
• B. Increasing power settings to expand coverage
• C. Configuring the APS to be compatible with 802.1la
• D. Changing the wireless channel used

Answer: C

Explanation:
* 802.11g is an older wireless standard that operates in the 2.4 GHz frequency band and has a maximum data rate of 54 Mbps. 802.11a is a newer wireless standard that operates in the 5 GHz frequency band and has a maximum data rate of 54 Mbps. By configuring the APS to be compatible with 802.11a, the network engineer can reduce interference and congestion in the 2.4 GHz band and improve wireless performance.
References: Network+ Study Guide Objective 2.5: Implement network troubleshooting methodologies

NEW QUESTION 2

A user is having difficulty with video conferencing and is looking for assistance. Which of the following would BEST improve performance?

• A. Packet shaping
• B. Quality of service
• C. Port mirroring
• D. Load balancing

Answer: B

Explanation:
Quality of service (QoS) is a mechanism that prioritizes network traffic based on different criteria, such as application type, source and destination address, port number, etc., and allocates bandwidth and resources accordingly. QoS would best improve performance for video conferencing, as it would ensure that video traffic gets higher priority and lower latency than other types of traffic on the network. Packet shaping is a technique that controls the rate or volume of network traffic by delaying or dropping packets that exceed certain thresholds or violate certain policies, which may not improve performance for video conferencing if it causes packet loss or jitter. Port mirroring is a technique that copies traffic from one port to another port on a switch for monitoring or analysis purposes, which does not improve performance for video conferencing at all. Load balancing is a technique that distributes network traffic across multiple servers or devices for improved availability and scalability, which does not

NEW QUESTION 3

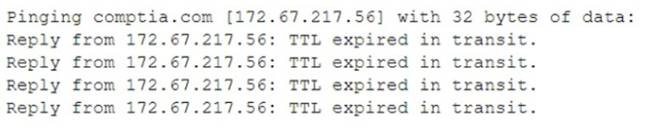

A network technician is troubleshooting a connectivity issue. All users within the network report that they are unable to navigate to websites on the internet; however, they can still access local network resources. The technician issues a command and receives the following results:

Which of the following best explains the result of this command?

• A. Incorrect VLAN settings
• B. Upstream routing loop
• C. Network collisions
• D. DNS misconfiguration

Answer: D

Explanation:
The users are unable to navigate to websites on the internet but can access local network resources, indicating a possible DNS issue. The ping command result showing “TTL expired in transit” suggests that packets are not reaching their destination due to a DNS misconfiguration that is not resolving website names into IP addresses correctly3. A possible solution is to check and correct the DNS server settings on the network devices4.
References: 3: What does “TTL expired in transit” mean?54: CompTIA Network+ N10-008 Cert Guide - Chapter 14: Network Monitoring2

NEW QUESTION 4

Two remote offices need to be connected securely over an untrustworthy MAN. Each office needs to access network shares at the other site. Which of the following will BEST provide this functionality?

• A. Client-to-site VPN
• B. Third-party VPN service
• C. Site-to-site VPN
• D. Split-tunnel VPN

Answer: C

Explanation:
A site-to-site VPN is a type of VPN that connects two or more remote offices securely over an untrustworthy network, such as the Internet. A site-to-site VPN allows each office to access network shares and resources at the other site, as if they were on the same local network. A site-to-site VPN encrypts and tunnels the traffic between the offices, ensuring privacy and integrity of the data. References: https://www.comptia.org/blog/what- is-a-site-to-site-vpn

NEW QUESTION 5

A network administrator needs to implement a solution to mediate access to the internet- Which of the following should the administrator most likely implement?

• A. Router
• B. Cloud gateway
• C. proxy
• D. Intrusion prevention system

Answer: C

Explanation:
A proxy is a solution that can mediate access to the internet. A proxy is a server that acts as an intermediary between a client and a destination server on the internet. A proxy can perform various functions, such as filtering, caching, logging, or modifying requests and responses. A proxy can help improve network performance, security, and privacy by reducing bandwidth consumption, blocking malicious or unwanted content, monitoring network activity, and hiding the client’s identity or location. References: [CompTIA Network+ Certification Exam Objectives], What Is a Proxy Server? | Proxy Server Definition | Avast

NEW QUESTION 6

A network administrator needs to monitor traffic on a specific port on a switch. Which of the following should the administrator configure to accomplish the task?

• A. Port security
• B. Port tagging
• C. Port mirroring
• D. Media access control

Answer: C

Explanation:
Port mirroring is a technique that allows a network administrator to monitor the traffic on a specific port on a switch by sending a copy of the packets seen on that port to another port where a monitoring device is connected1. Port mirroring can be used to analyze and debug data, diagnose errors, or perform security audits on the network without affecting the normal operation of the switch

NEW QUESTION 7

A technician is installing the Wi-Fi infrastructure for legacy industrial machinery at a warehouse. The equipment only supports 802.11a and 802.11b standards. Speed of transmission is the top business requirement. Which of the following is the correct maximum speed for this scenario?

• A. 11Mbps
• B. 54Mbps
• C. 128Mbps
• D. 144Mbps

Answer: B

Explanation:
802.11b (Wi-Fi 1) 11 Mbps
100 meter maximum effective range 802.11a (Wi-Fi 2)
54 Mbps
50 meter maximum effective range

NEW QUESTION 8

Two users on a LAN establish a video call. Which of the following OSI model layers ensures the initiation coordination, and termination of the call?

• A. Session
• B. Physical
• C. Transport
• D. Data link

Answer: A

Explanation:
The OSI model layer that ensures the initiation, coordination, and termination of a video call is the session layer. The session layer is responsible for establishing, maintaining, and terminating communication sessions between two devices on a network.

NEW QUESTION 9

A company joins a bank's financial network and establishes a connection to the clearinghouse servers in the range 192 168.124.0/27. An IT technician then realizes the range exists within the VM pool at the data center. Which of the following is the BEST way for the technician to connect to the bank's servers?

• A. NAT
• B. PAT
• C. CIDR
• D. SLAAC

Answer: A

NEW QUESTION 10

A sales team at a company uses a SaaS solution primarily for videoconferencing and a CRM application that connects to a database server in the corporate data center. Which of the following VPN solutions would allow secure, remote access for sales staff to the CRM application without impacting videoconferencing traffic?

• A. Clientless
• B. Site-to-site
• C. Split tunnel
• D. Full tunnel

Answer: A

Explanation:
A split tunnel VPN solution would allow secure, remote access for sales staff to the CRM application without impacting videoconferencing traffic. A VPN stands for virtual private network, which is a secure connection between two or more devices over a public
network, such as the internet. A VPN encrypts and authenticates the data, ensuring its confidentiality and integrity. A split tunnel VPN is a type of VPN that allows some traffic to go through the VPN tunnel, while other traffic goes directly to the internet. This can improve performance and bandwidth utilization by reducing unnecessary encryption and routing overhead. By using a split tunnel VPN, sales staff can access the CRM application that connects to a database server in the corporate data center through the VPN tunnel, while using online videoconferencing services through their local internet
connection. References: [CompTIA Network+ Certification Exam Objectives], What Is Split Tunneling? | NordVPN

NEW QUESTION 11

A network technician has determined the cause of a network disruption. Which of the following is the NEXT step for the technician to perform?

• A. Validate the findings in a top-to-bottom approach
• B. Duplicate the issue, if possible
• C. Establish a plan of action to resolve the issue
• D. Document the findings and actions

Answer: C

NEW QUESTION 12

Which of the following DNS records works as an alias to another record?

• A. AAAA
• B. CNAME
• C. MX
• D. SOA

Answer: B

Explanation:
The DNS record that works as an alias to another record is called CNAME (Canonical Name). CNAME records are used to create an alias for a domain name that points to another domain name.
References:
✑ CompTIA Network+ Certification Study Guide, Exam N10-007, Fourth Edition, Chapter 2: The OSI Model and Networking Protocols, Objective 2.3: Given a scenario, implement and configure the appropriate addressing schema.

NEW QUESTION 13

Which of the following uses the link-state routing algorithm and operates within a single autonomous system?

• A. EIGRP
• B. OSPF
• C. RIP
• D. BGP

Answer: B

Explanation:
OSPF uses a link state routing algorithm and falls into the group of interior routing protocols, operating within a single autonomous system (AS). OSPF is perhaps the most widely used interior gateway protocol (IGP) in large enterprise networks

NEW QUESTION 14

Which of the following is required when connecting an endpoint device with an RJ45 port to a network device with an ST port?

• A. A media converter
• B. A bridge
• C. An MDIX
• D. A load balancer

Answer: A

Explanation:
The device that is required when connecting an endpoint device with an RJ45 port to a network device with an ST port is a media converter. A media converter is a device that converts signals between different types of media, such as copper and fiber. An RJ45 port is used for twisted-pair copper cables, while an ST port is used for fiber-optic cables. A media converter allows these two types of cables to interconnect and communicate. References: CompTIA Network+ N10-008 Certification Study Guide, page 54; The Official CompTIA Network+ Student Guide (Exam N10-008), page 2-5.

NEW QUESTION 15

A network administrator is notified that a user cannot access resources on the network. The network administrator checks the physical connections to the workstation labeled User 3 and sees the Ethernet is properly connected. However, the network interface's indicator lights are not blinking on either the computer or the switch. Which of the following is the most likely cause?

• A. The switch failed.
• B. The default gateway is wrong.
• C. The port is shut down.
• D. The VLAN assignment is incorrect.

Answer: C

Explanation:
If the port is shut down, it means that the switch has disabled the port and is not sending or receiving any traffic on it. This would explain why the network interface’s indicator lights are not blinking on either the computer or the switch, and why the user cannot access resources on the network. The port could be shut down manually by the network administrator, or automatically by the switch due to security or error conditions.
References
✑ Port shutdown is one of the common switch configuration options covered in Objective 2.3 of the CompTIA Network+ N10-008 certification exam1.
✑ Port shutdown can cause the network interface’s indicator lights to stop blinking2.
✑ Port shutdown can prevent the user from accessing resources on the network3.
1: CompTIA Network+ Certification Exam Objectives, page 5 2: CompTIA Network+ N10- 008: Switch not forwarding frames on trunked port3 3: Cable Management – N10-008 CompTIA Network+ : 1.3

NEW QUESTION 16

A network administrator is configuring a database server and would like to ensure the database engine is listening on a certain port. Which of the following commands should the administrator use to accomplish this goal?

• A. nslookup
• B. netstat -a
• C. ipconfig /a
• D. arp -a

Answer: B

Explanation:
netstat -a is a command that displays information about active TCP connections and listening ports on a system. A network administrator can use netstat -a to check if the database engine is listening on a certain port, as well as verify if there are any connections established to or from that port. References: https://www.comptia.org/blog/what-is-netstat
